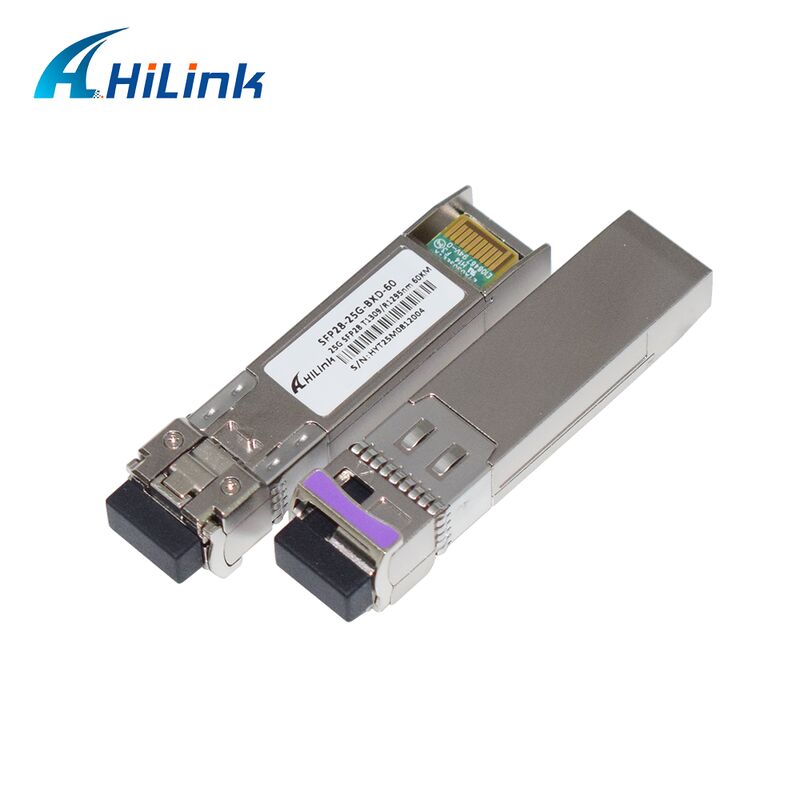

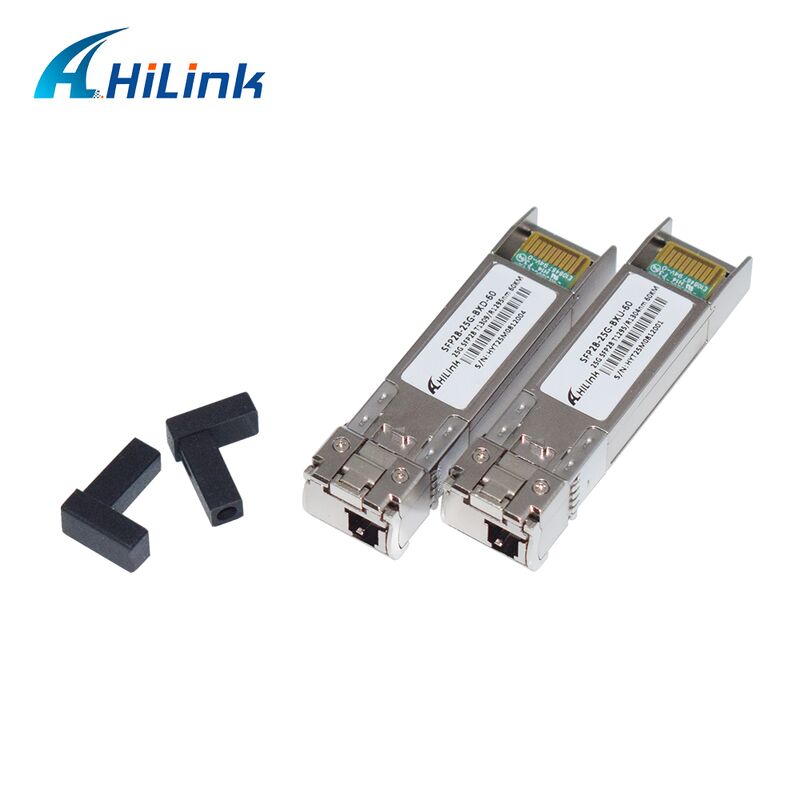

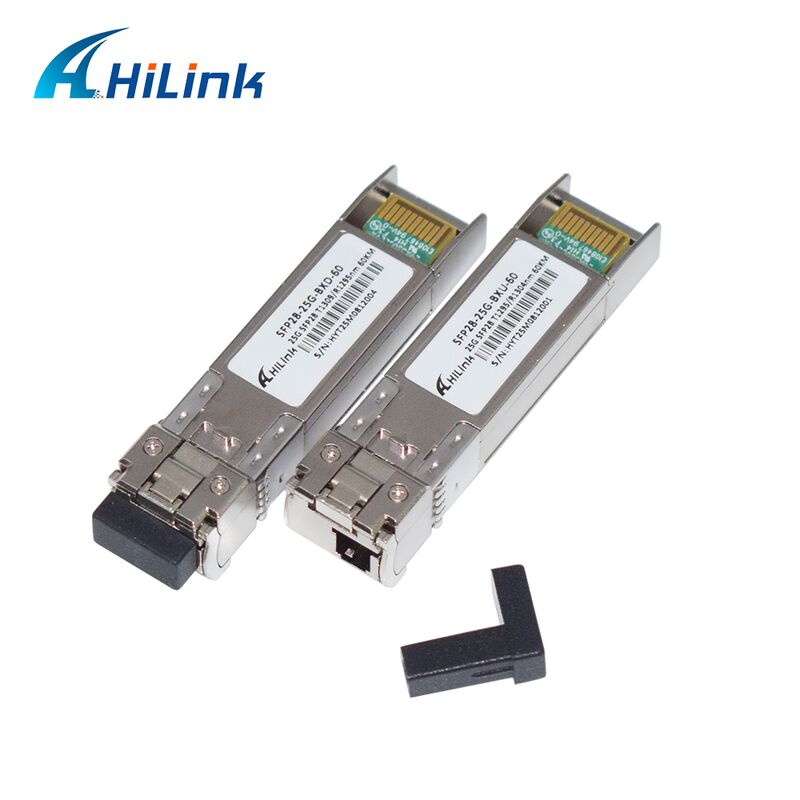

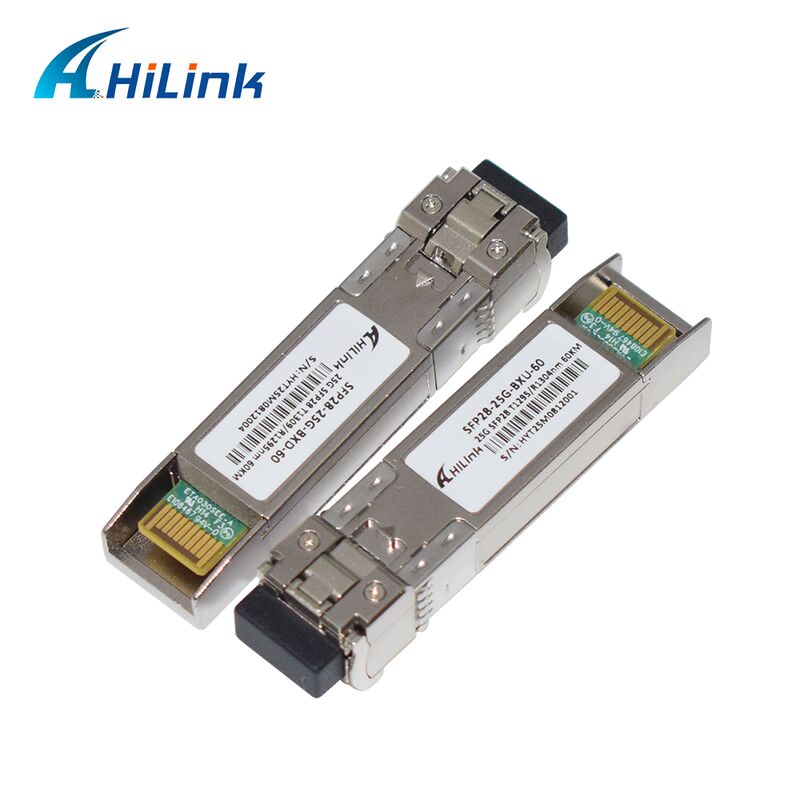

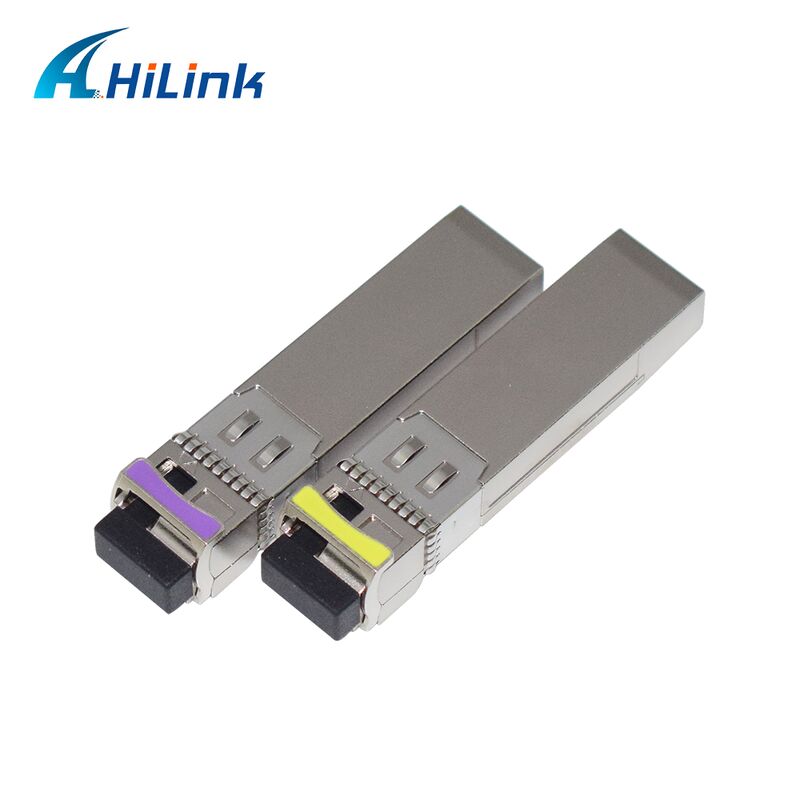

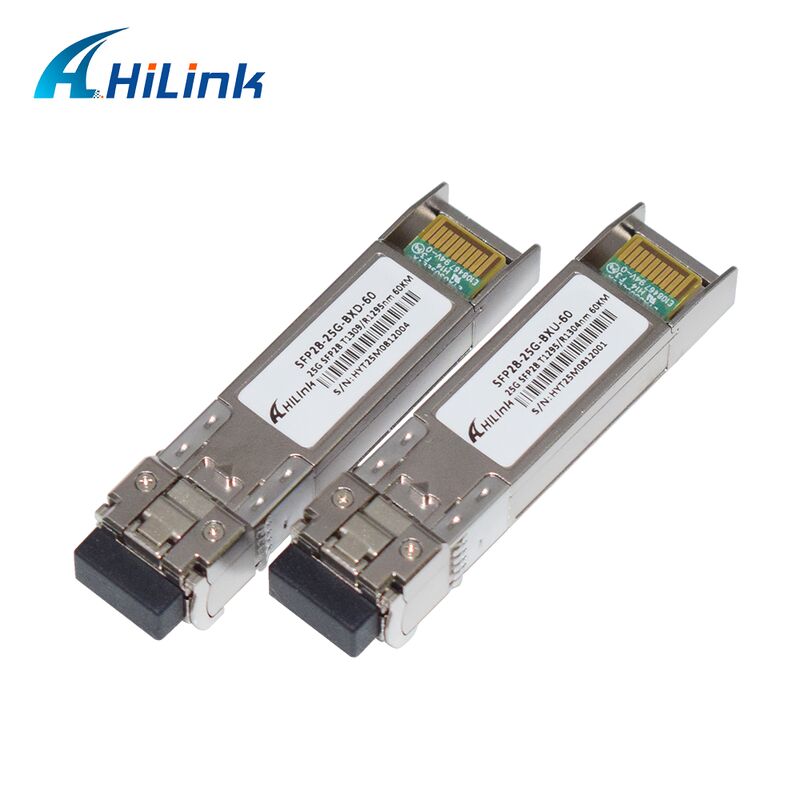

Name: 25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-SFP28-25G-U/D60
Price: 893.00 USD
Availability: InStock

집 > 상품 > SFP 송수신기 단위 >

25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication

25Gb/s SFP28 BIDI Transceiver

60km Fiber Optic Transceiver

1295/1309nm Bi-Directional Transceiver

Place of Origin:

Guangdong, China

브랜드 이름:

HILINK

인증:

CE FCC Rohs

Model Number:

HL-SFP28-25G-U/D60

저희와 연락

인용 을 요청 하십시오

25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication

제품 세부 정보

Products name:

25Gb/s 60Km SFP28 BIDI Transceivers

Connetor:

Simplex LC

Data rate:

25G

Distance:

60KM

Wavelength:

1295/1309

Temperature Range:

0℃ ~ +70℃

인증:

CE RoHS FCC

Type:

Fiber Optic Transceivers, 25GSFP

지불 및 배송 조건

Minimum Order Quantity

1pcs

가격

협상 가능

Packaging Details

Static bag, Plastic Flat, Retail box, by requires

Delivery Time

5-8workingdays

Payment Terms

Western Union,T/T,L/C

Supply Ability

100pcs/month

25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication

최상의 가격을 얻으세요

GPON OLT Transceiver SFP Module with 8dBm 9dBm Output and 2.5G Data Rate

최상의 가격을 얻으세요

EPON OLT SFP Transceiver with PX20+ PX20++ PX20+++ for 1.25Gbps Data Rate and 20KM Transmission

최상의 가격을 얻으세요

1.25G EPON ONU SFP Transceiver with SC/UPC Receptacle for 20KM Distance and 0℃ ~ +70℃ Temperature Range

최상의 가격을 얻으세요

저희와 연락

86-755-8317-6243

지금 연락하세요

제품 설명

25G SFP28 BIDI 60km Bi-Directional Transceiver 1295/1309nm EML+APD Commercial/Industrial DDM RoHS 6

Features

Support data rate up to 25.78125Gb/s
Hot-Pluggable SFP Footprint and Single LC Connector
Up to 60km reach for G.652 SMF
EML TX and Integrated APD RX
Temperature Range: Commercial: 0°C ~70°C / Industrial: -40°C ~85°C
Power consumption: Commercial: 1.5W / Industrial: 1.8W
RoHS 6 compliance
Compliant to IEEE 802.3cc, SFF-8472 and SFF-8419
Complies with EU Directive 2015/863/EU

Applications

25G Ethernet
CPRI option 10

Product Description

The HL-SFP28-25G-U/D60 series single mode transceiver is small form factor pluggable module for duplex optical data communications. The HL-SFP28-25G-U/D60 module is designed for single mode fiber and operates at a nominal wavelength of 1295.56nm or 1309.14nm; the transmitter section uses a multiple quantum well EML, which is class 1 laser compliant according to International Safety Standard IEC-60825.

The SFP28 60km module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.

Our Service

OEM and ODM: OEM/ODM order is available.

Guarantee

We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What we supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.
