Name: GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-GPON-ONU
Price: 893.00 USD
Availability: InStock

집 > 상품 > SFP 송수신기 단위 >

GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance

1310nm DFB burst mode transmitter SFP Transceiver

1490nm Super-TIA continuous mode receiver Optical Transceiver

20KM Distance GPON ONU SFP Transceiver

원래 장소:

중국 광둥

브랜드 이름:

HILINK

인증:

CE FCC Rohs

모델 번호:

HL-GPON-ONU

저희와 연락

인용 을 요청 하십시오

GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance

제품 세부 정보

제품 이름:

GPON ONU SFP

파장:

송신 1310nm 1.244G, 수신 1490nm 2.488G

코터:

SC/UPC

거리:

20km

온도 범위:

0℃ ~ +70℃/-40~+85℃

인증:

RoHS-6 Compliant

지불 및 배송 조건

최소 주문 수량

1개

가격

협상 가능

포장 세부 사항

정전기 가방, 플라스틱 플랫, 소매 박스가 지나서 요구합니다

배달 시간

5-8workingdays

지불 조건

Western Union, T/T, L/C.

공급 능력

100pcs/월

1.25G EPON ONU SFP Transceiver with SC/UPC Receptacle for 20KM Distance and 0℃ ~ +70℃ Temperature Range

최상의 가격을 얻으세요

GPON ONU SFP Transceiver with 1310nm DFB Burst Mode Transmitter and 1490nm Super-TIA Receiver for 20KM Distance

최상의 가격을 얻으세요

GPON OLT Transceiver SFP Module with 8dBm 9dBm Output and 2.5G Data Rate

최상의 가격을 얻으세요

1.25Gb/s BIDI SFP 트랜시버 DFB 레이저와 APD 수신기 상용 온도 범위에서 120km 전송

최상의 가격을 얻으세요

저희와 연락

86-755-8317-6243

지금 연락하세요

제품 설명

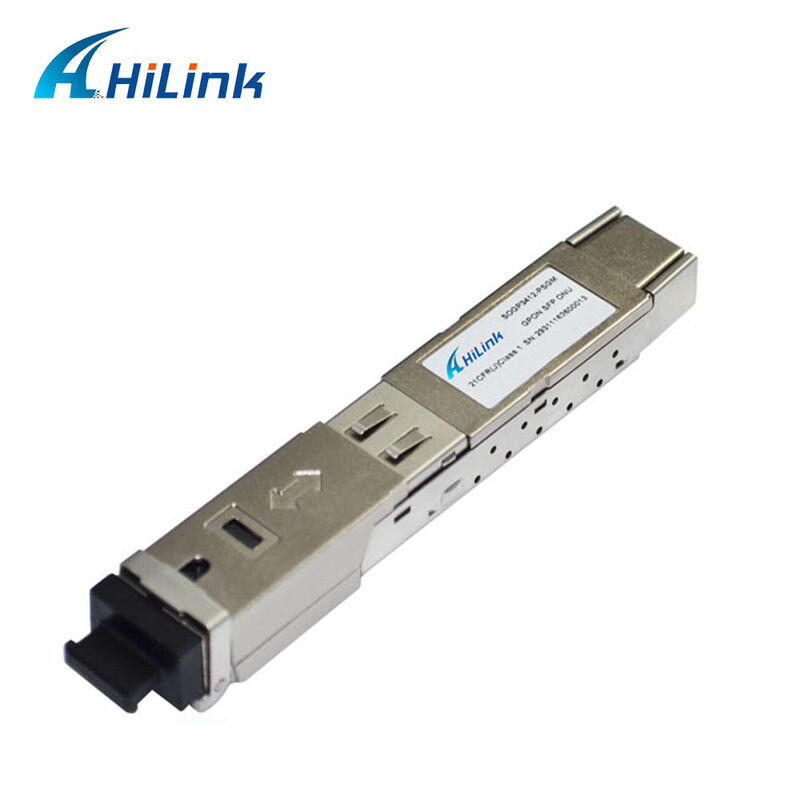

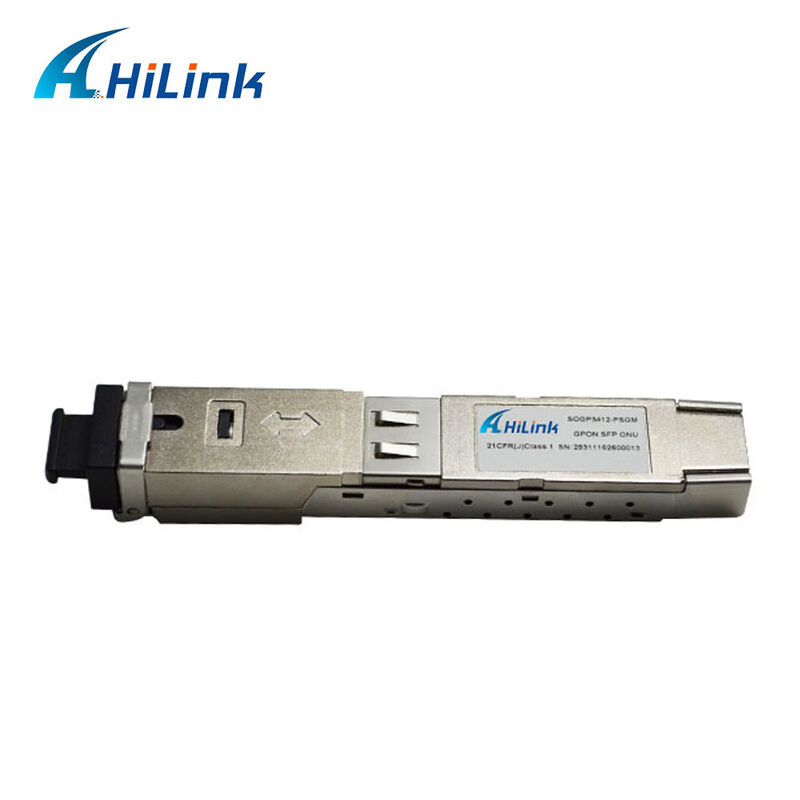

GPON ONU SFP Transceiver

High-performance GPON ONU SFP transceiver designed for FTTx applications, featuring asymmetric data transmission with 1244Mbps upstream and 2488Mbps downstream capabilities.

Key Features

Single fiber bi-directional data links with asymmetric 1244Mbps upstream and 2488Mbps downstream
1310nm DFB burst mode transmitter
1490nm Super-TIA continuous mode receiver
LVPECL logic level data input interface
0 to 70°C operating case temperature
SFP package with SC/UPC receptacle optical interface
CML logic level data output interface
LVTTL burst enable control and high level enable
LVTTL receiver signal-detected indication
TX Burst Mode Detection, TX_SD
Voice/Data FTTx ONT/ONU Applications

Standards Compliance

Compliance with ITU-T G.984.2 G-PON ONU
Complies with SFP MSA, digital diagnostics SFF-8472
RoHS-6 compliance

Our Services

Custom OEM and ODM services available to meet specific application requirements.

Quality Guarantee

All optical transceivers are brand new with new components, never using old or refurbished materials. Each unit undergoes rigorous functional and aging tests. We provide a comprehensive 3-year warranty from the date of shipment.

Product Range

We supply compatible optical transceiver modules including:

SFP, GBIC, SFP+
XENPAK, X2, XFP
BIDI, CWDM, DWDM
Special modules compatible with most major brands

Packaging & Shipping

International shipping via premium carriers including DHL, FedEx, EMS, TNT, and UPS with typical delivery in 3-7 business days.
