Name: HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-SFP28-LR-10KM
Price: 130.00 USD
Availability: InStock

집 > 상품 > 광학적인 송수신기 단위 >

HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers

원래 장소:

중국

브랜드 이름:

HiLink or OEM

인증:

CE FCC ROSH

모델 번호:

HL-SFP28-LR-10KM

저희와 연락

인용 을 요청 하십시오

HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers

제품 세부 정보

데이터 속도:

25Gbps

파장:

1310nm

커넥터 유형:

전송 거리:

10km

전력 소비:

<1.2W

작동 온도:

-40°C ~ +85°C

지불 및 배송 조건

최소 주문 수량

1PC

가격

협상 가능

포장 세부 사항

일반 또는 OEM

배달 시간

5-8 영업일

지불 조건

T/T, 웨스턴 유니온, 페이팔

공급 능력

1주일에 2000 PC

HL-SFP28-25G-SR 25Gbps SFP28 SR Dual LC Optical Transceiver with 850nm VCSEL and 100m Reach

최상의 가격을 얻으세요

HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers

최상의 가격을 얻으세요

비디오

100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM 광 수신기 DOM

최상의 가격을 얻으세요

비디오

QSFP28-BX-D40 100G QSFP28 40KM 1304/1309nm BIDI 광 수신기 EML+APD SFP 수신기

최상의 가격을 얻으세요

저희와 연락

지금 연락하세요

제품 설명

HL-SFP28-LR-10KM 25G SFP28 10km Dual LC Transceivers

Product Overview

The HL-SFP28-LR-10KM Transceiver is designed for 10km reach service 25.78Gb/s 1310nm single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It features low power consumption, operates on a 3.3V DC power supply, and is available in industrial temperature range. Compliant with SFP28 MSA, SFF-8431 and SFF-8432 standards.

The optical assembly features low jitter and low bit error rate with a DML laser transmitter and PIN/TIA receiver. It utilizes internal clock and data recovery (CDR) units on transmitter and receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.

Key Features

Operating data rate up to 25.78Gbps
Rate Adaptation
Up to 10km transmission distance
High sensitivity Pin photodiode and TIA
LC duplex connector
Hot pluggable 20pin connector
Low power consumption <1.2 W
Single +3.3V±5% power supply
Compliant with SFF-8472 & IEEE 802.3cc
Fully RoHS Compliant
Operating temperature range:
- Commercial: 0°C to +70°C
- Industrial: -40°C to +85°C

Applications

Data Center Backbone
Ethernet Switches
High-speed Servers
High-performance Computing Clusters
SAN, Routers, Hubs, Load Balancer

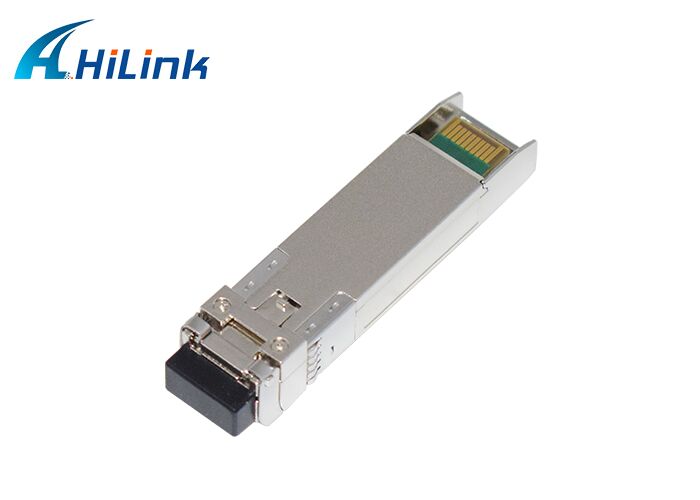

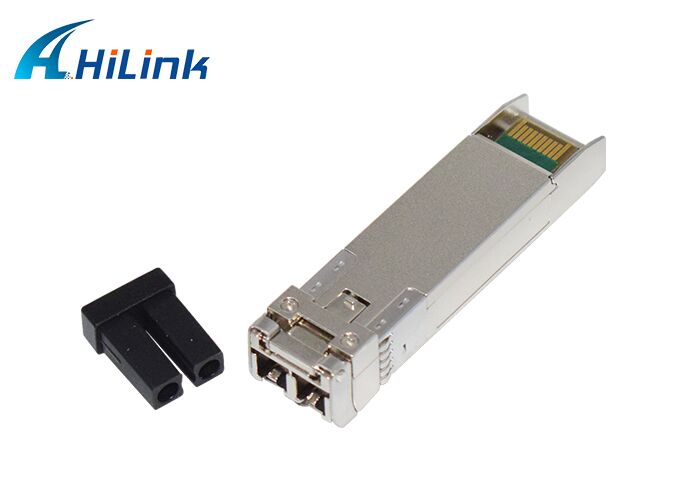

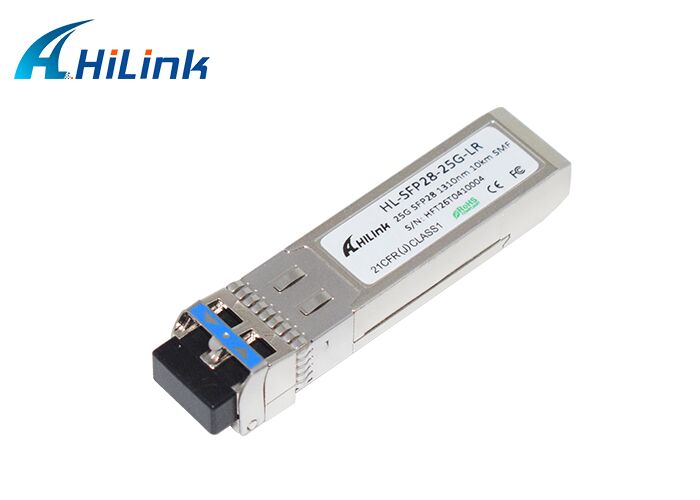

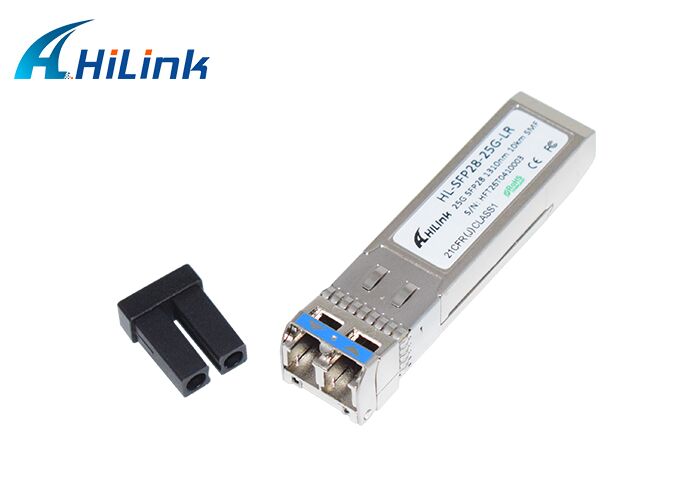

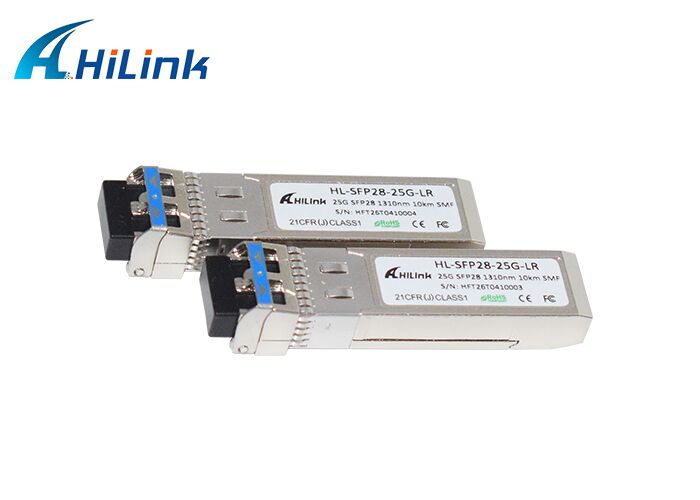

Product Images
