Name: Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP200G-LR8
Price: 130.00 USD
Availability: InStock

집 > 상품 > 광학적인 송수신기 단위 >

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design

원래 장소:

중국 광둥

브랜드 이름:

Hilink

인증:

CE RoHs

모델 번호:

HL-QSFP200G-LR8

저희와 연락

인용 을 요청 하십시오

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design

제품 세부 정보

제품명:

QSFP200G-LR8

데이터 속도:

200g

거리:

10km

보증:

3년

인증:

RoHS

배달 시간:

3-7근무일

OEM:

지원하다

지불 및 배송 조건

최소 주문 수량

1개

가격

협상 가능

포장 세부 사항

일반 패키지 또는 OEM

배달 시간

5-8 영업일

지불 조건

L/C, T/T, 웨스턴 유니온

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring

최상의 가격을 얻으세요

Hilink QDD-400G-SR8 Multi-mode 850nm 400G BASE-SR8 QSFP-DD Transceiver, With Diagnostic Monitoring

최상의 가격을 얻으세요

비디오

QDD-400G-SR8 400G MMF 850nm QSFP-DD PAM4 100m DOM MTP/MPO-16 광 트랜시버

최상의 가격을 얻으세요

QSFP56 200G 다중 모드 850nm 200G BASE-SR4 QSFP56 트랜시버

최상의 가격을 얻으세요

저희와 연락

지금 연락하세요

제품 설명

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 10km Optical Transceiver (MPO16)

Feel free to contact us for details, compatibility, customization and wholesale pricing.

The HL-QSFP200G-LR8 is an eight-channel, pluggable, parallel, fiber-optic QSFP DD PSM8 transceiver designed for 2×100 Gigabit Ethernet and Infiniband DDR/EDR applications. This high-performance module integrates eight data lanes in each direction with 208 Gbps bandwidth, with each lane operating at 26Gbps up to 10km over G.652 single-mode fiber. The modules operate over single-mode fiber systems using a nominal wavelength of 1310nm, featuring a 76-contact edge type electrical connector and a 16-fiber MTP (MPO) optical connector.

Incorporating Hilink Technologies' proven circuit and optical technology, this transceiver provides reliable long life, high performance, and consistent service for demanding data communication and interconnect applications.

Key Features

8 channels full-duplex transceiver modules
Supports 8×25Gb/s aggregate bit rates
Supports 8×10Gb/s aggregate bit rates if required
8 channels 1310nm DFB
8 channels PIN photo detector array
Internal CDR circuits on both receiver and transmitter channels
Support CDR bypass
Low power consumption <6.5W
Hot Pluggable QSFP DD form factor
Up to 10km reach for G.652 SMF
Single male MPO16 (APC 8-degree) connector receptacle
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS compliant (lead free)

Applications

2×100G Ethernet links
Infiniband DDR/EDR
Datacenter and Enterprise networking

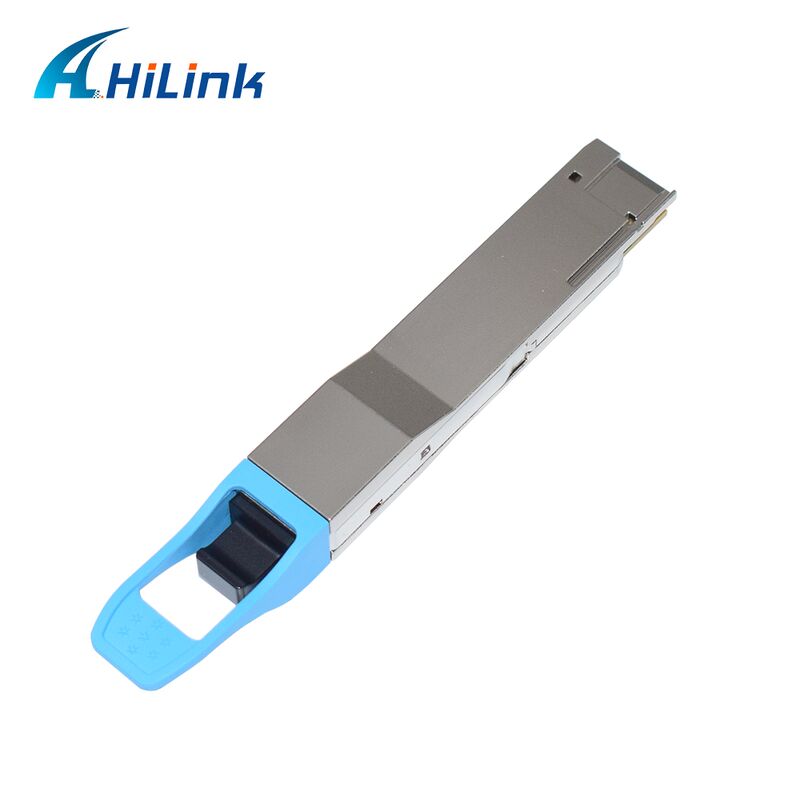

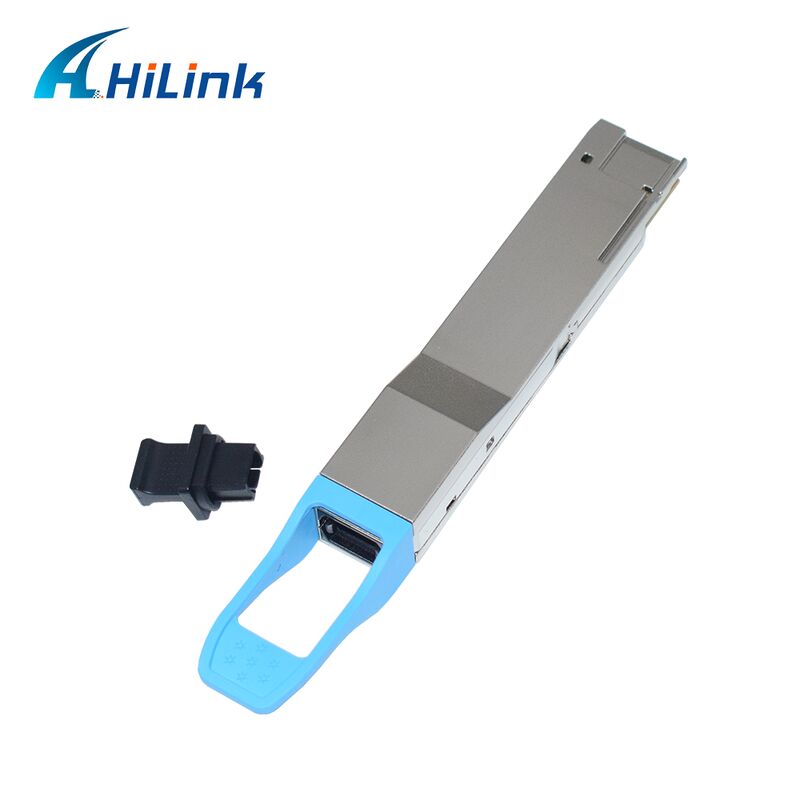

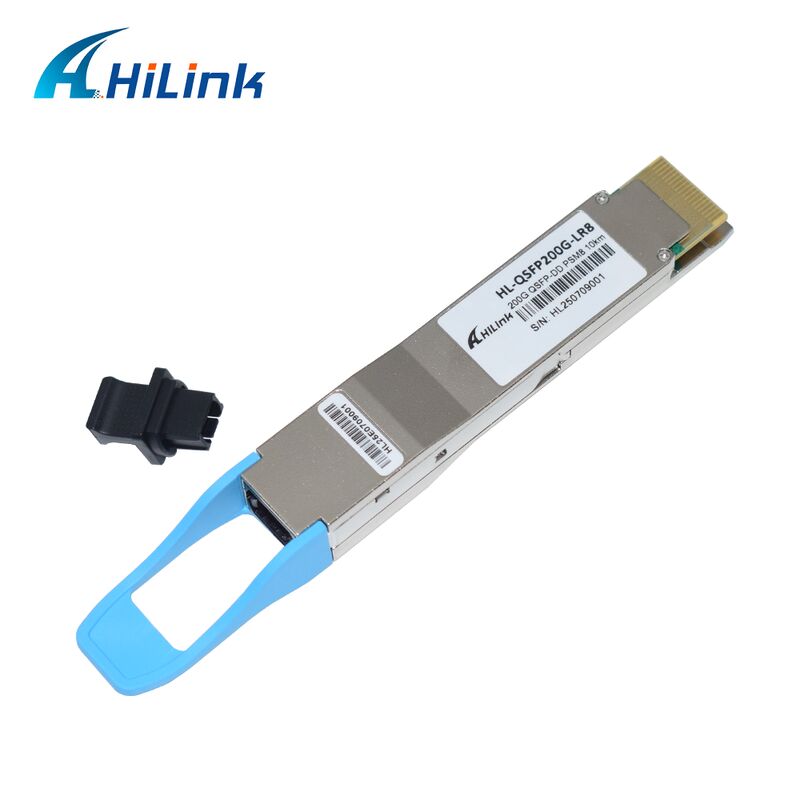

Product Images
