Name: QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP56-200G-SR4
Price: 125.00 USD
Availability: InStock

집 > 상품 > 광학적인 송수신기 단위 >

QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver

QSFP56 200G SR4 transceiver

200G BASE-SR4 optical module

850nm multi-mode QSFP56 transceiver

원래 장소:

중국 광둥

브랜드 이름:

HILINK

인증:

CE FCC Rohs

모델 번호:

HL-QSFP56-200G-SR4

저희와 연락

인용 을 요청 하십시오

QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver

제품 세부 정보

데이터 속도:

200GB/s

거리:

100m

파장:

850nm

커넥터:

MPO-12 커넥터

보증:

3년

패키지:

QSFP56

지불 및 배송 조건

최소 주문 수량

1개

가격

$100-150

포장 세부 사항

정적 가방, 플라스틱 플랫, 소매 상자, 필요에 따라

지불 조건

L/C, T/T, 서부 동맹. 페이팔

공급 능력

100/PCS/월

QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver

최상의 가격을 얻으세요

비디오

60km 전송 및 DDM 지원 25Gb/s SFP28 BIDI 광 트랜시버

최상의 가격을 얻으세요

25G SFP28 BIDI 10km/20km/40km/50km/60km 광학 모듈

최상의 가격을 얻으세요

OSFP 트랜시버 400G 데이터 속도 10km 전송 1310nm 파장 (400G 이더넷 및 데이터 센터용)

최상의 가격을 얻으세요

저희와 연락

+86 17677464632

sales02@hilinktech.com

86-755-8317-6243

지금 연락하세요

제품 설명

QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver

The QSFP56-200G-SR4 is a high-performance, 4-channel pluggable fiber-optic transceiver designed for 200Gbps short-range applications. Operating at 53.125Gbps per lane using PAM4 modulation, this module supports distances up to 70m on OM3 multimode fiber and 100m on OM4 multimode fiber.

Product Overview

This QSFP56 transceiver features an MPO optical interface and 38-contact electrical edge connector, operating at a nominal wavelength of 850nm. It is engineered for reliable performance in data center and high-speed networking environments.

Key Features

Hot-pluggable QSFP56 form factor
Data rate up to 53.125 Gb/s PAM4 per lane
4x53Gbps PAM4 transmitter and receiver
4-channel 850nm VCSEL laser array and PIN photo-detector array
Maximum link length: 70m on OM3 MMF, 100m on OM4 MMF
Digital diagnostics via I2C interface
Single 3.3V power supply
Power dissipation: QSFP56-200G-SR4C < 5.5W, QSFP56-200G-SR4B < 6W
MPO-12 connector
Operating case temperature: 0℃ to +70℃
RoHS compliant

Applications

200GBASE-SR4 Ethernet links
Data center interconnects

Ordering Information

Part Number	Product Description
QSFP56-200G-SR4C	200G QSFP56 SR4 CDR MPO-12 PC connector, 70m on OM3 MMF and 100m on OM4 MMF, 0ºC to +70ºC
QSFP56-200G-SR4B	200G QSFP56 SR4 DSP MPO-12 PC connector, 70m on OM3 MMF and 100m on OM4 MMF, 0ºC to +70ºC
QSFP56-200G-SR4C1	200G QSFP56 SR4 CDR MPO-12 APC connector, 70m on OM3 MMF and 100m on OM4 MMF, 0ºC to +70ºC
QSFP56-200G-SR4B1	200G QSFP56 SR4 DSP MPO-12 APC connector, 70m on OM3 MMF and 100m on OM4 MMF, 0ºC to +70ºC

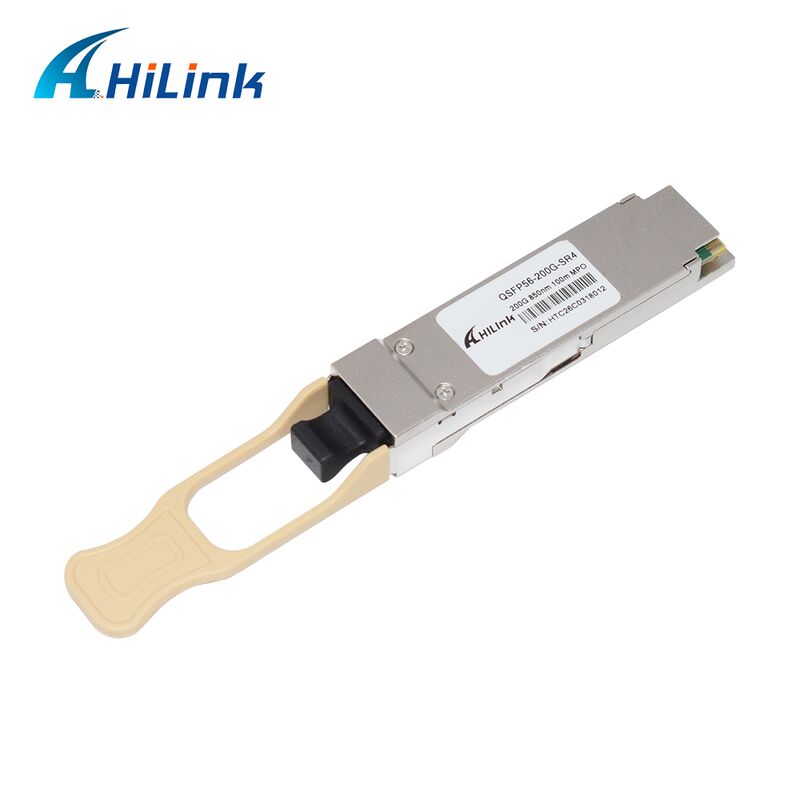

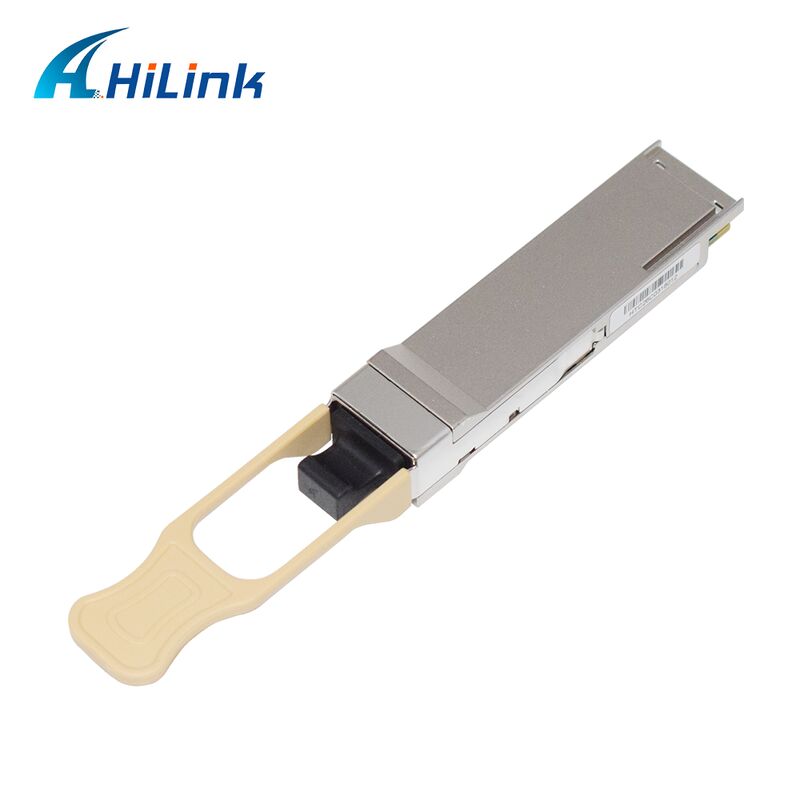

Product Images

Mechanical Drawings

Frequently Asked Questions

Do you sell second-hand products?

No. All our products are brand new, and we never use second-hand components.

What payment terms do you accept?

T/T, PayPal, and Western Union are acceptable.

What are the shipping methods you offer?

Our usual shipping methods include DHL, FedEx, TNT, UPS, and EMS. Delivery typically takes 3-7 days.

Do your products come with warranty?

Yes, we provide a 3-year warranty for all our products from the date of shipment.

How to place an order?

1. Confirm order details including model and quantity required.
2. Review and confirm Proforma Invoice, then arrange payment.
3. We confirm and ship goods, providing tracking number promptly.
4. We assist with tracking until safe receipt of goods.

We offer various product types. If you cannot find the specific item you need, please send us an inquiry and we will follow up shortly.
