Name: OSFP 400G LR4 1310nm 10km Transceiver Module
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: OSFP-400G-LR4
Price: 130.00 USD
Availability: InStock

집 > 상품 > 광학적인 송수신기 단위 >

OSFP 400G LR4 1310nm 10km Transceiver Module

OSFP 400G LR4 transceiver module

1310nm 10km optical transceiver

400G LR4 fiber optic module

원래 장소:

중국 광둥

브랜드 이름:

Hilink

인증:

CE Rohs

모델 번호:

OSFP-400G-LR4

저희와 연락

인용 을 요청 하십시오

OSFP 400G LR4 1310nm 10km Transceiver Module

제품 세부 정보

제품명:

OSFP-400G-LR4

데이터 속도:

400G

도달하다:

10km

사용:

데이터 센터

섬유 커넥터:

이중 LC

작동 온도:

0 ~ 70 ℃

지불 및 배송 조건

최소 주문 수량

1개 조각

가격

Send Inquiry know latest price

포장 세부 사항

플라스틱 상자+상자

배달 시간

5-8 근무일

지불 조건

T/T, Western Union, Alipay, PayPal/Wechat/Trade Assurance

공급 능력

2000 조각/주

Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission

최상의 가격을 얻으세요

HL-Cir-1310 3포트 광순환기 포트1&포트3-LC/UPC 포트2-SC/APC 1310nm/1550nm/1610nm 데이터센터용 ABS 박스

최상의 가격을 얻으세요

힐링크 100G QSFP28 광 트랜시버 모듈 (100km 거리, 100G 데이터 속도, ZR4+ 규격 준수)

최상의 가격을 얻으세요

HL-QSFP28-100G-FR1 100Gbps QSFP28 FR 단일 람다 송신기 2km 범위 광 송신기 모듈

최상의 가격을 얻으세요

저희와 연락

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

지금 연락하세요

제품 설명

OSFP 400G LR4 1310nm 10km Transceiver Module

Hilink's OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 10km single mode fiber. The module has 8 independent electrical input/output channels operating up to 53.125Gbps per channel. The integrated GearBox in module converts the 8 channels of 53.125Gbps (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 106.25Gbps (PAM4) operation for an aggregate data rate of 400Gb/s. The four transmitter/receiver units operate on the ITU G.694.2 CWDM grid near 1300nm. The electrical interface of the module is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs, and compliant with OSFP MSA.

Key Features

Supports 425Gbps
Single 3.3V Power Supply
Up to 10km over SMF with KP4 FEC supported at the Host side
Duplex LC connector
8x53.125Gbps (PAM4) electrical interface
PIN and TIA array on the receiver side
Power dissipation < 8W
Case temperature range: 0°C to 70°C (commercial)
Safety Certification: TUV/UL/FDA*1
RoHS Compliant

Applications

400G Ethernet
400G-LR4 applications
Data center
InfiniBand

Transmitter Specifications

The transmitter path contains an 8x50Gbps 400GAUI-8 electrical input with Equalization (EQ) block, integrated electrical multiplexer, integrated driver, 4 externally modulated lasers, optical multiplexer and diagnostic monitors. The integrated electrical multiplexer and integrated driver converts 8 channels of 50Gbps (PAM4) electrical input data to 4 channels of 100Gbps (PAM4) parallel CWDM optical signals. The transmitter complies with EN 60825 and CDRH Class 1 human eye safety compliance.

Receiver Specifications

The receiver path contains optical de-multiplexer, eight PIN photodiodes, trans-impedance amplifiers (TIA), integrated de-multiplexer and 8x50G 400GAUI-8 compliant electrical output blocks. The PIN-TIA and integrated de-multiplexer converts 4 channels of 100Gbps (PAM4) parallel optical signals to 8 channels of 50Gbps (PAM4) electrical output data.

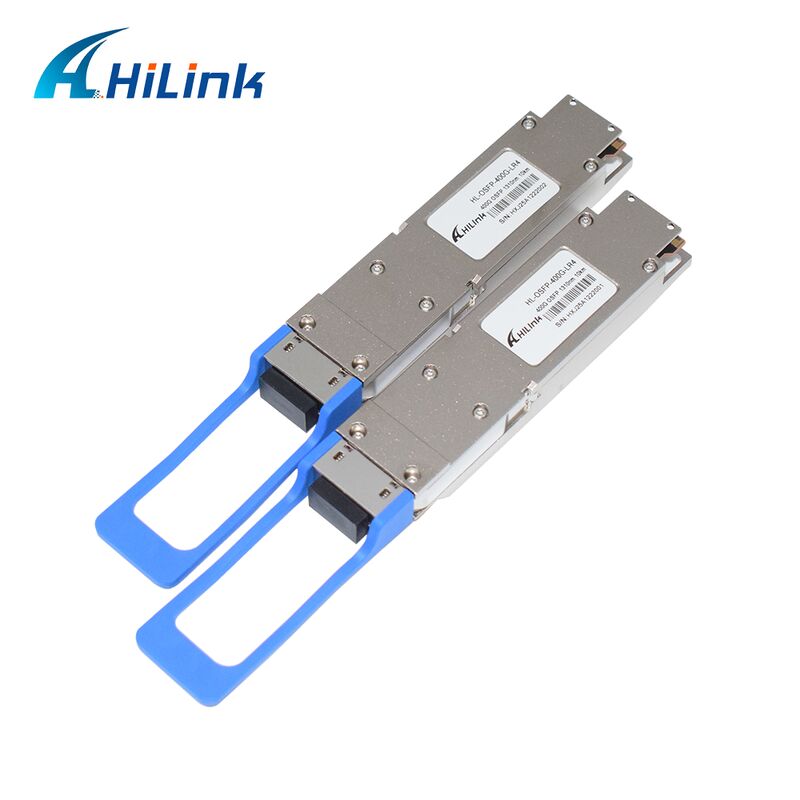

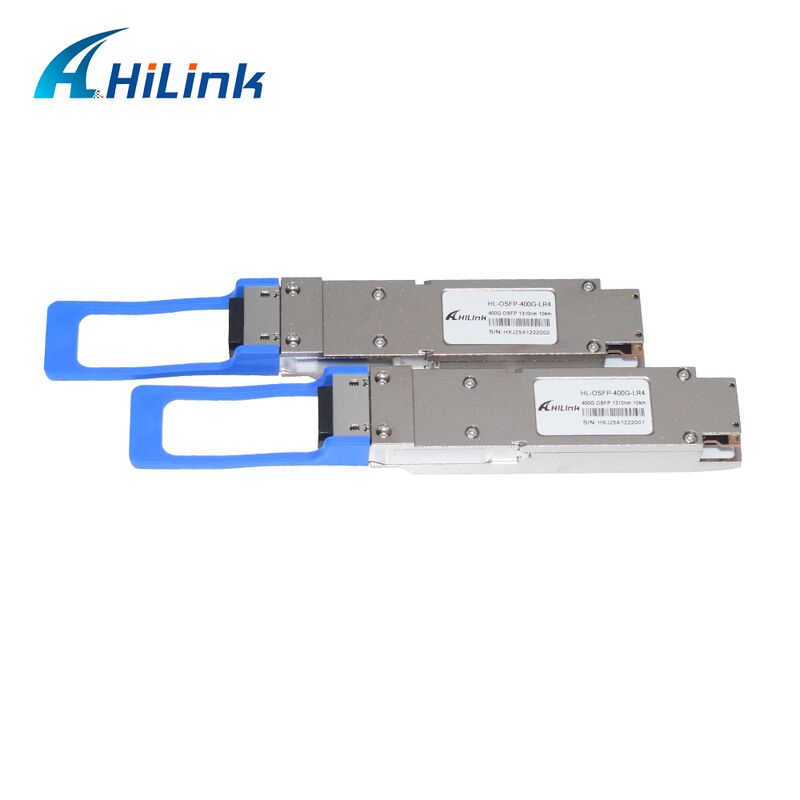

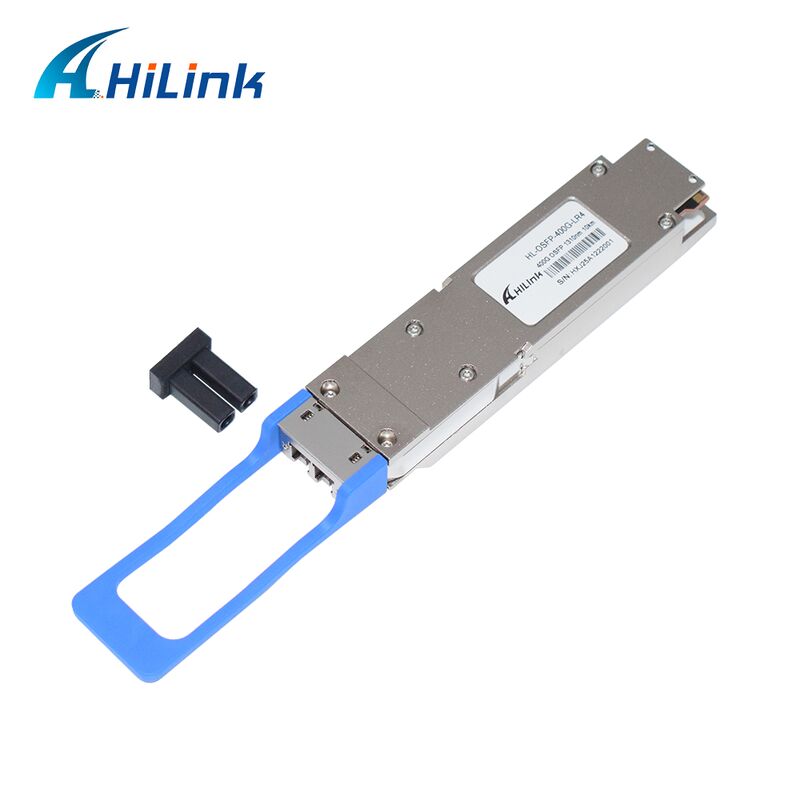

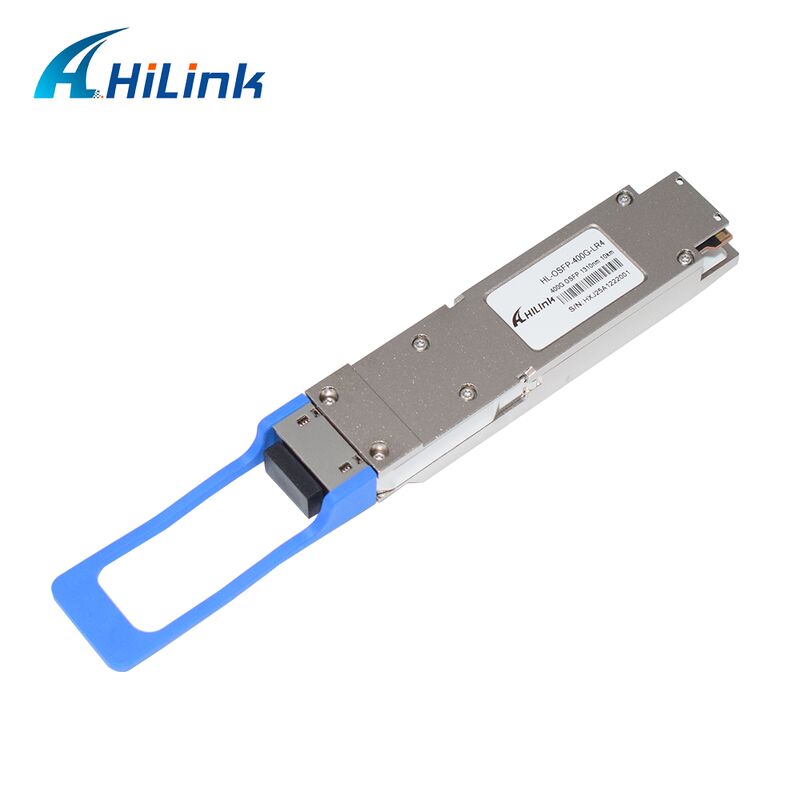

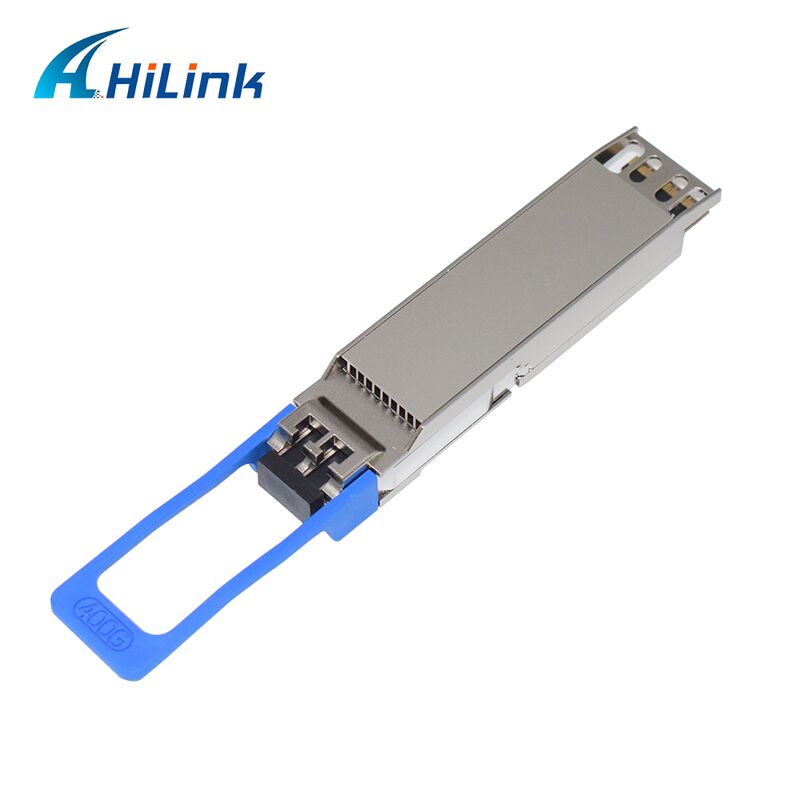

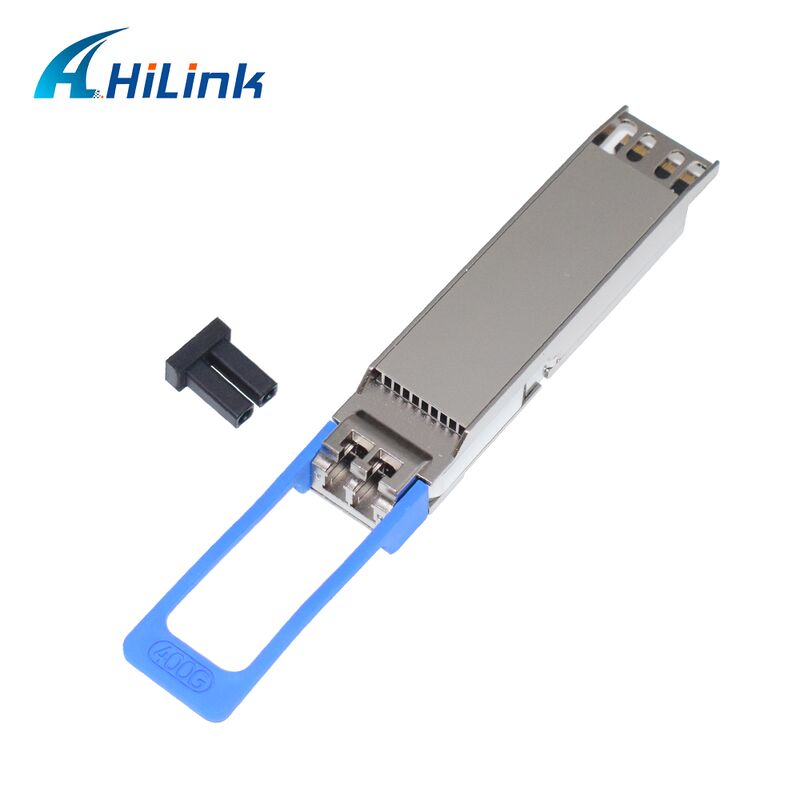

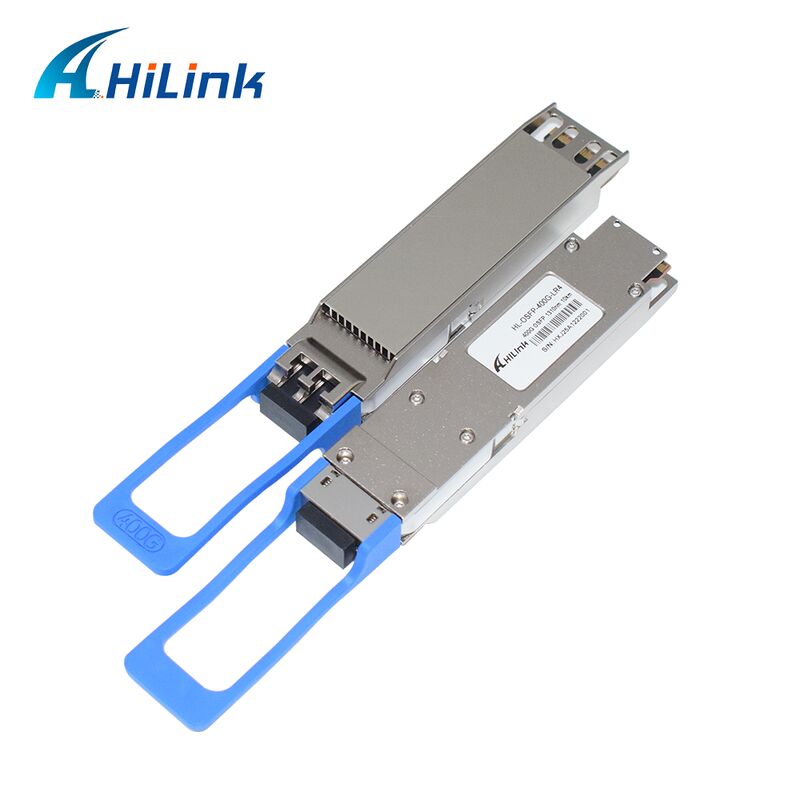

Product Images

Our Service

OEM/ODM order is available

We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
