40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant

40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant

4 CWDM lanes MUX/DEMUX design QSFP+ Transceiver

10km 40G QSFP+ LR4

Compliant with 40G Ethernet IEEE802.3ba Fiber Optic Transceiver

원래 장소:

광동, 중국

브랜드 이름:

HILINK

인증:

CE FCC Rohs

모델 번호:

HL-QSFP-40G-LR4

저희와 연락
인용 을 요청 하십시오
제품 세부 정보
제품 이름:
40G QSFP+ 10Km
코터:
이중 LC
데이터 속도:
40g
거리:
10km
온도 범위:
0℃ ~ +70℃
인증:
RoHS Compliant
유형:
광섬유 트랜시버, 40g QSFP+
디지털 진단 기능:
내장
지불 및 배송 조건
최소 주문 수량
1pcs
가격
EXW: 1084~1176USD/PCS
포장 세부 사항
정전기 가방, 플라스틱 플랫, 소매 박스가 지나서 요구합니다
배달 시간
5-8workingdays
지불 조건
Western Union, T/T, L/C.
공급 능력
100pcs/월
관련 제품
저희와 연락
86-755-8317-6243
지금 연락하세요
제품 설명
40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant
Product Description

The HL-QSFP-40G-LR4 is a high-performance transceiver module designed for 10km optical communication applications. Compliant with 40GBASE-LR4 of the IEEE P802.3ba standard, this module converts 4 input channels of 10Gb/s electrical data to 4 CWDM optical signals, multiplexing them into a single channel for 40Gb/s optical transmission. On the receiver side, it optically de-multiplexes a 40Gb/s input into 4 CWDM channel signals and converts them to 4 channel output electrical data.

Key Features
  • 4 CWDM lanes MUX/DEMUX design
  • Up to 11.2Gbps per channel bandwidth
  • Aggregate bandwidth of > 40Gbps
  • Duplex LC connector
  • Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard
  • QSFP MSA compliant
  • Up to 10km transmission
  • Compliant with QDR/DDR Infiniband data rates
  • Single +3.3V power supply operating
  • Built-in digital diagnostic functions
  • Operating temperature range: 0°C to 70°C
  • RoHS Compliant
Applications
  • Rack to rack connections
  • Data center switches and routers
  • Metro networks
  • 40G BASE-LR4 Ethernet links

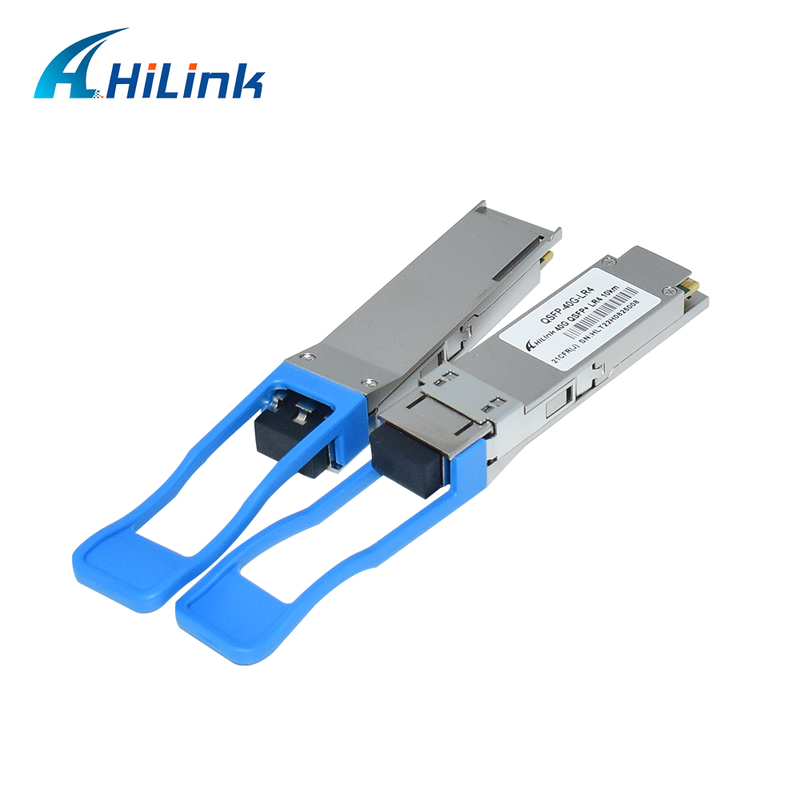

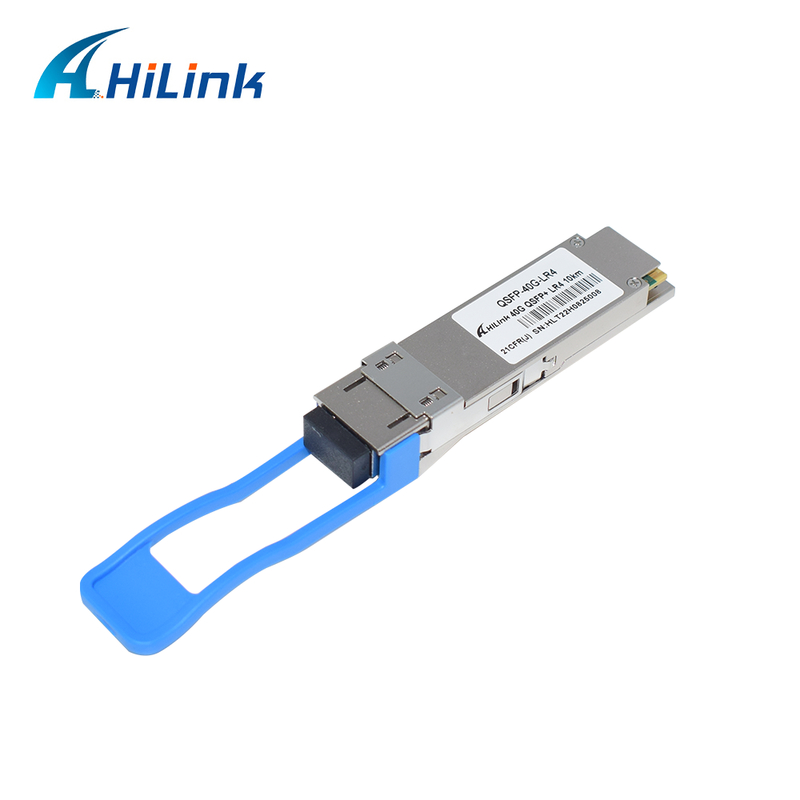

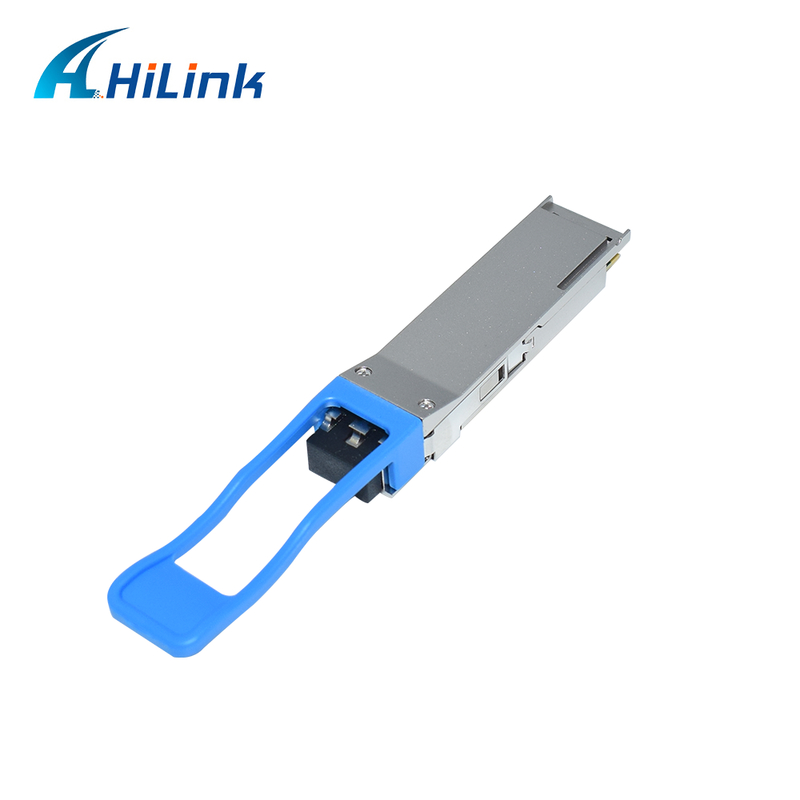

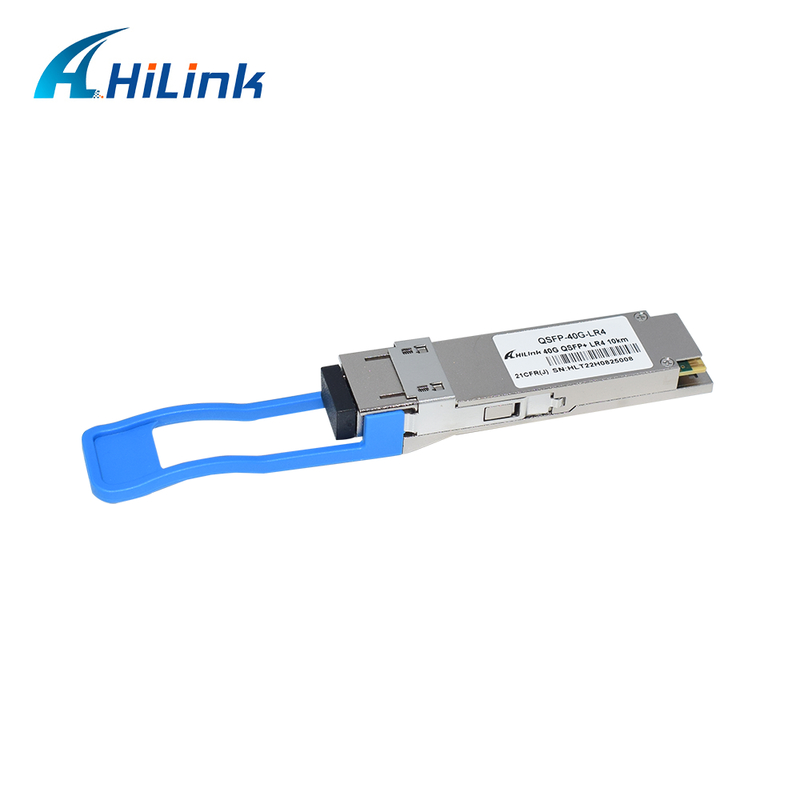

Product Images
40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant 0 40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant 1 40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant 2
Our Services

OEM and ODM: Custom OEM/ODM orders are available for this product.

Quality Guarantee

All advertised optical transceivers are brand new with new components and never use old or refurbished materials. Each unit undergoes functional testing and aging tests. We provide a 3-year warranty from the date of shipment.

Product Range

We supply a comprehensive range of compatible optical transceiver modules including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and other special transceiver modules compatible with most major brands.

Packaging & Shipping

We ship internationally via DHL, FedEx, EMS, TNT, UPS and other carriers, with delivery typically taking 3-7 days.

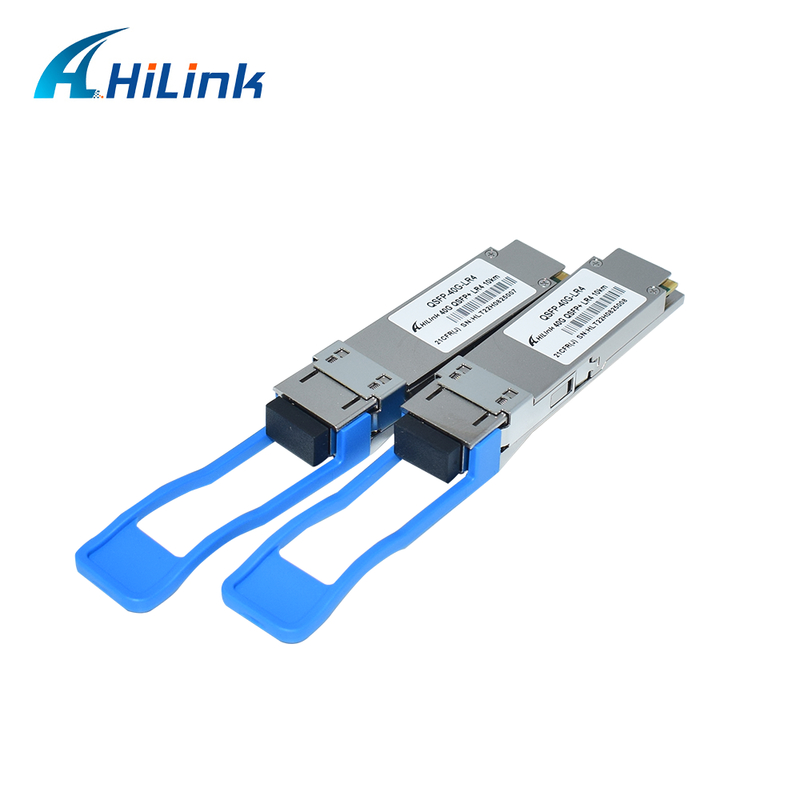

40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant 3
