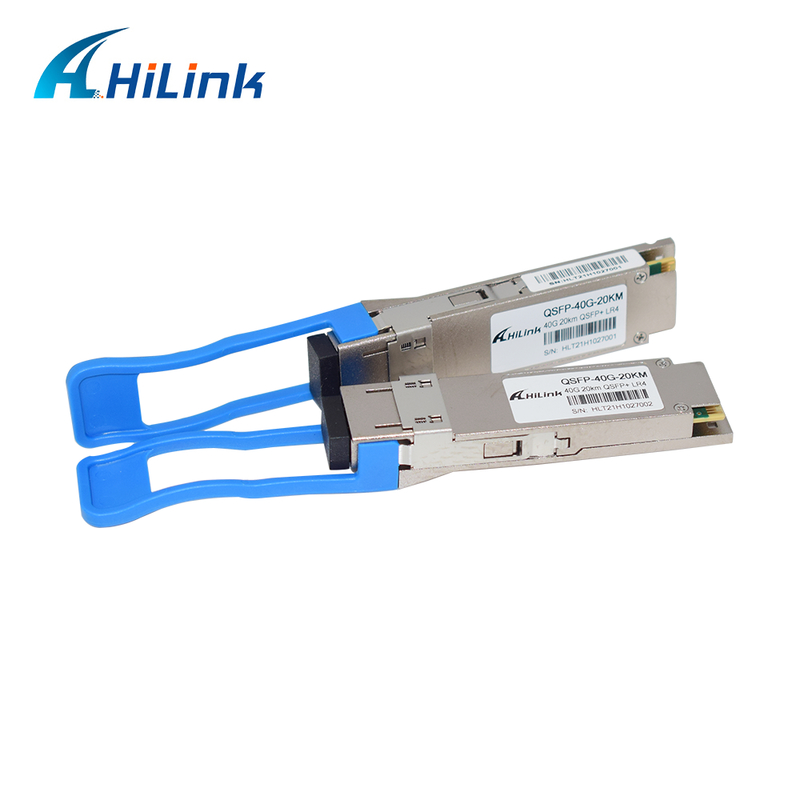

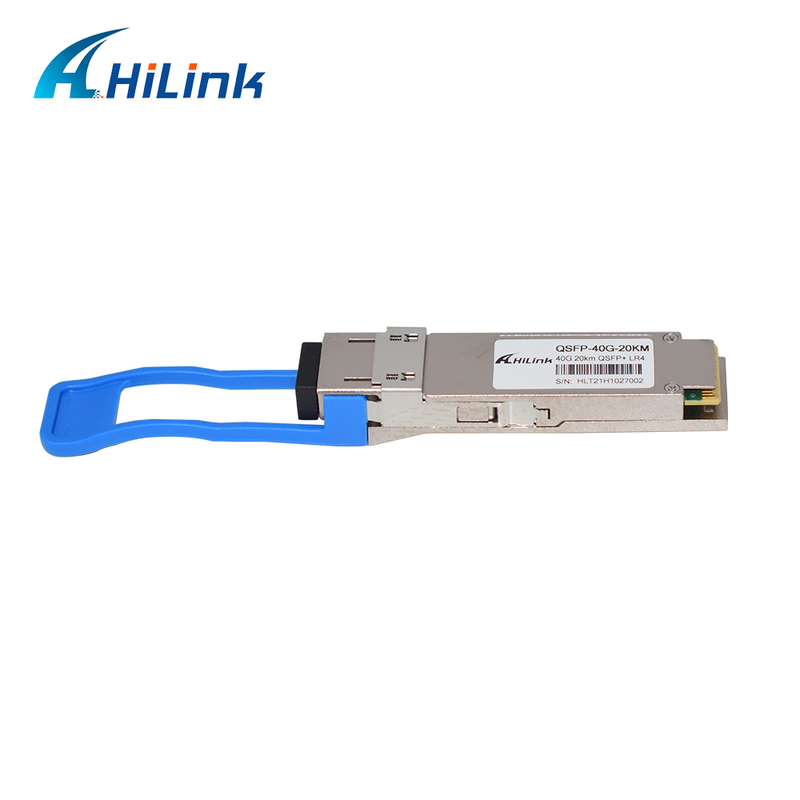

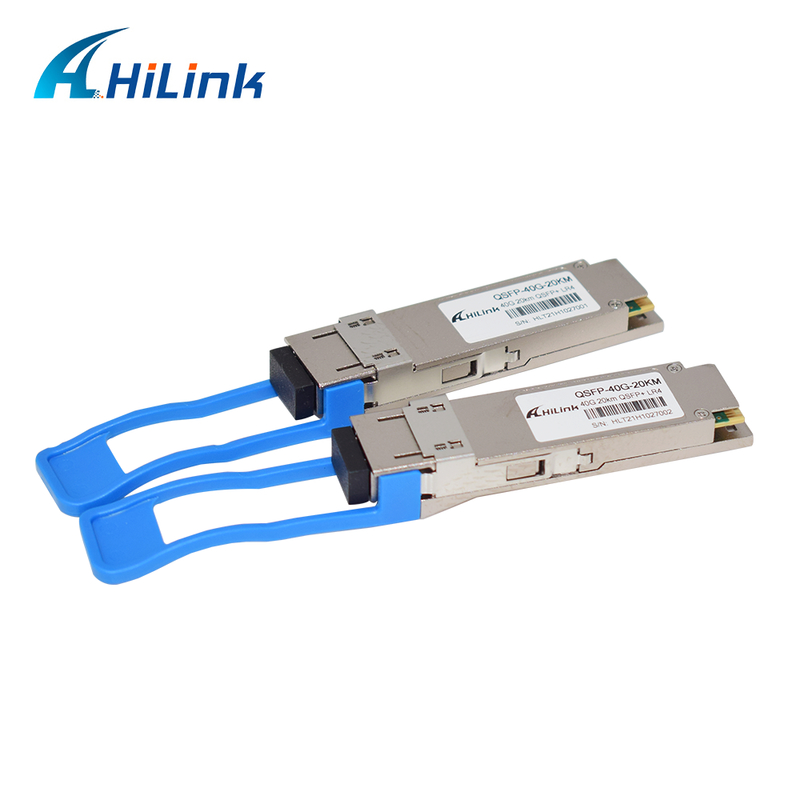

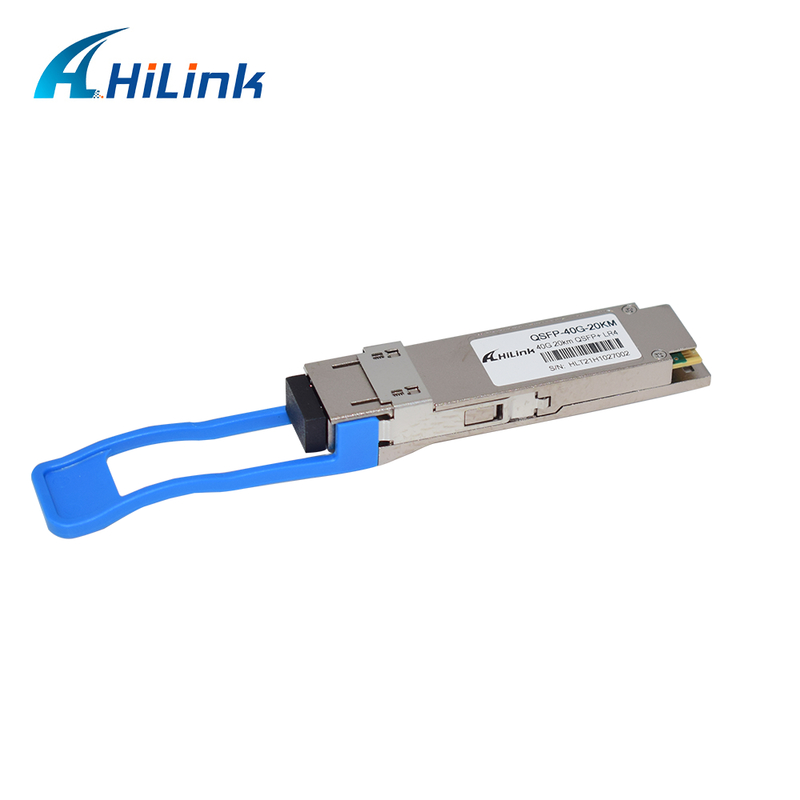

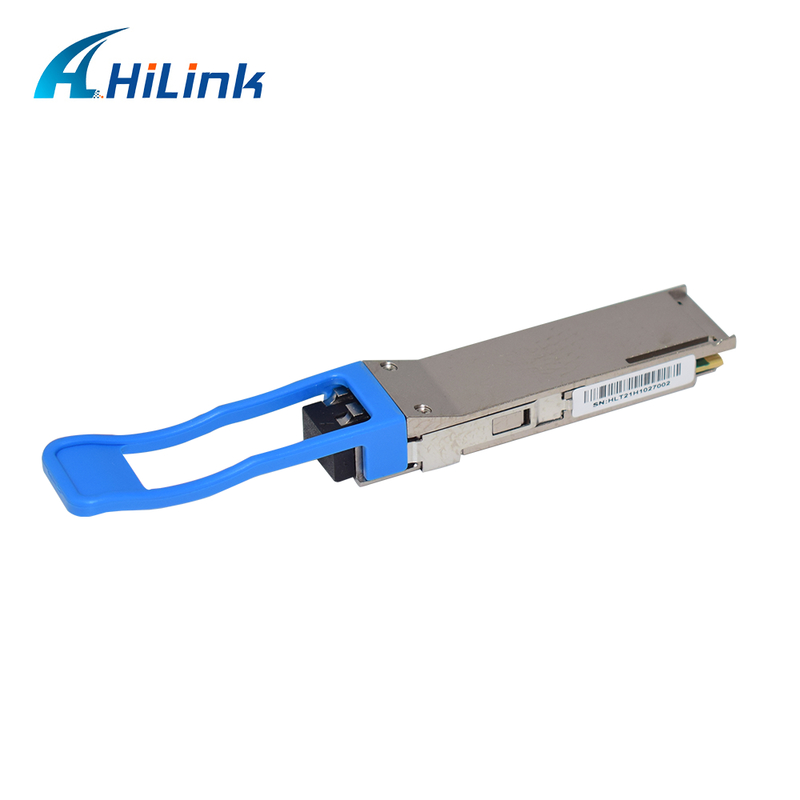

Name: 40Gb/s 20km QSFP+ Optical Transceiver Hot Pluggable with Duplex LC Connector and DDM for 0°C to 70°C Operation
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP-40G-LR4
Price: 71.00 USD
Availability: InStock

집 > 상품 > QSFP+ 송수신기 >

40Gb/s 20km QSFP+ Optical Transceiver Hot Pluggable with Duplex LC Connector and DDM for 0°C to 70°C Operation

40Gb/s QSFP+ Optical Transceiver

20km Fiber Optic Transceiver

Hot Pluggable QSFP+ Transceiver

원래 장소:

광동, 중국

브랜드 이름:

HILINK

인증:

CE FCC Rohs

모델 번호:

HL-QSFP-40G-LR4

저희와 연락

인용 을 요청 하십시오

40Gb/s 20km QSFP+ Optical Transceiver Hot Pluggable with Duplex LC Connector and DDM for 0°C to 70°C Operation

제품 세부 정보

제품 이름:

40G QSFP+ 20Km

코터:

이중 LC

데이터 속도:

40g

거리:

20km

온도 범위:

0℃ ~ +70℃

인증:

RoHS Compliant

유형:

광섬유 트랜시버, 40g QSFP+

디지털 진단 기능:

내장

지불 및 배송 조건

최소 주문 수량

1pcs

가격

EXW: 65~77USD/PCS

포장 세부 사항

정전기 가방, 플라스틱 플랫, 소매 박스가 지나서 요구합니다

배달 시간

5-8workingdays

지불 조건

Western Union, T/T, L/C.

공급 능력

100pcs/월

40Gb/s 20km QSFP+ Optical Transceiver Hot Pluggable with Duplex LC Connector and DDM for 0°C to 70°C Operation

최상의 가격을 얻으세요

비디오

MTP MPO MMF SFP 광 전송부 DDM DOM QSFP+ 850nm 150m

최상의 가격을 얻으세요

40G QSFP+ 40Km 트랜시버, 듀플렉스 LC 커넥터

최상의 가격을 얻으세요

HILINK 10G SFP+에서 SFP+ 섬유 변환기 300M-80KM 3R 반복기

최상의 가격을 얻으세요

저희와 연락

86-755-8317-6243

지금 연락하세요

제품 설명

40Gb/s 20km QSFP+ LR4 Optical Transceiver

Hot Pluggable Duplex LC Connector with DDM (0°C to 70°C)

The HL-QSFP-40G-LR4 is a high-performance transceiver module designed for 20km optical communication applications, compliant with 40GBASE-LR4 of the IEEE P802.3ba standard.

Key Features

4 CWDM lanes MUX/DEMUX design
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of >40Gbps
Duplex LC connector
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard
QSFP MSA compliant
Up to 20km transmission distance
Supports QDR/DDR Infiniband data rates
Single +3.3V power supply
Built-in digital diagnostic monitoring
Operating temperature range: 0°C to 70°C
RoHS compliant

Technical Description

The module converts 4 input channels of 10Gb/s electrical data to 4 CWDM optical signals, multiplexing them into a single channel for 40Gb/s optical transmission. On the receiver side, it optically de-multiplexes a 40Gb/s input into 4 CWDM channel signals and converts them to 4 channel output electrical data.

Applications

Rack to rack connections
Data center switches and routers
Metro networks
40G BASE-LR4 Ethernet links

Our Services

OEM and ODM: Custom orders available to meet specific requirements.

Quality Guarantee: All transceivers are brand new with new components, thoroughly tested with functional and aging tests. 3-year warranty from shipment date.

Product Range: We supply compatible optical transceiver modules including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and special modules compatible with most major brands.

Packaging & Shipping

International Express via DHL, FedEx, EMS, TNT, UPS with delivery in 3-7 days.
