400G QSFP-DD ZR Coherent Transceiver 0-75℃

400G QSFP-DD ZR Coherent Transceiver 0-75℃

400G QSFP-DD ZR transceiver module

coherent optical transceiver 0-75℃

QSFP-DD transceiver with extended temperature range

원래 장소:

광동, 중국

브랜드 이름:

Hilink

인증:

CE Rohs

모델 번호:

400G-QSFPDD-ZR

저희와 연락
인용 을 요청 하십시오
제품 세부 정보
제품 이름:
400G-QSFPDD-ZR
데이터 속도:
400g
작동 온도:
0 내지 75C
지불 및 배송 조건
최소 주문 수량
1 조각
가격
Send Inquiry know latest price
포장 세부 사항
플라스틱 상자+상자
배달 시간
5-8 근무일
지불 조건
T/T, Western Union, Alipay, PayPal/Wechat/Trade Assurance
공급 능력
2000 조각/주
제품 설명
400G QSFP-DD ZR Coherent Transceiver 0-75℃
Product Overview

The 400G QSFP-DD ZR Transceiver is a high performance, cost effective module for optical data communication applications to 400G. The 400G QSFP-DD ZR is designed to 400G 120Km DCI DWDM applications without inline chromatic dispersion compensation.

Features
  • QSFP-DD MSA compliant type 2B package
  • Up to 120Km transmission distance
  • Client signal 400GbE or 4x100GbE
  • Line Modulation format 400G DP-16QAM
  • C-band tunable, supports 100/75GHz grid spacing, support 0.1GHz fine tuning
  • TX power -13dBm~-9dBm tunable
  • Support ingress LF hold-off time configure
  • Support hitless firmware upgrade
  • Compact size (18.35 mm × 93.26 mm × 8.50 mm)
  • Duplex LC Receptacle
  • Operating case temperature: 0℃ to 75°C
  • Maximum power consumption 18W (400GbE)
  • Single 3.3 V power supply
  • RoHS 2 compliant
Applications
  • Edge DCI 400GBASE-ZR application
  • 30~40Km unamplified 400GbE P2P link
  • Up to 120Km P2P link with amplification
Product Images

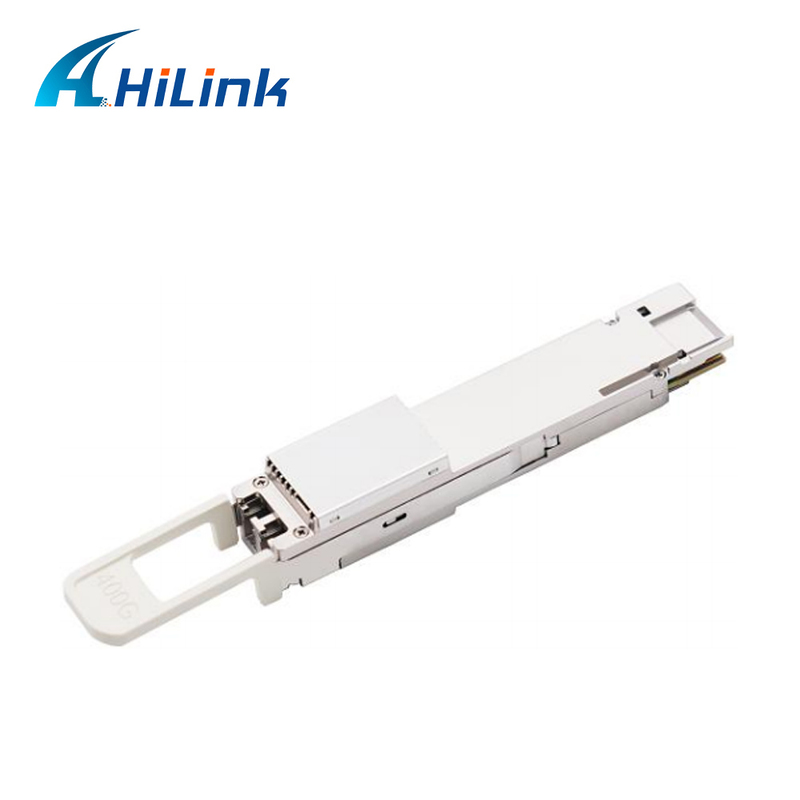

400G QSFP-DD ZR Coherent Transceiver 0-75℃ 0
Quality Assurance

Warranty & Quality Commitment:
All advertised optical transceivers are brand new with new components. We never use old or refurbished materials. Each unit undergoes functional and aging tests before shipment.

3-Year Warranty:
We provide a 3-year warranty for all optical transceivers from the date of shipment. OEM/ODM orders are available upon request.
