원래 장소:
광동, 중국
브랜드 이름:
HILINK
인증:
CE FCC Rohs
모델 번호:
HL-SFP28-Bidi-40km
| Attribute | Value |
|---|---|
| Data transfer rate | 25G |
| Max Distance | 600km |
| Wavelength 1 | 1270nm/1310nm |
| Connector | LC Simplex |
| Warranty | 3 Years |
| CE FCC Rohs | Support |

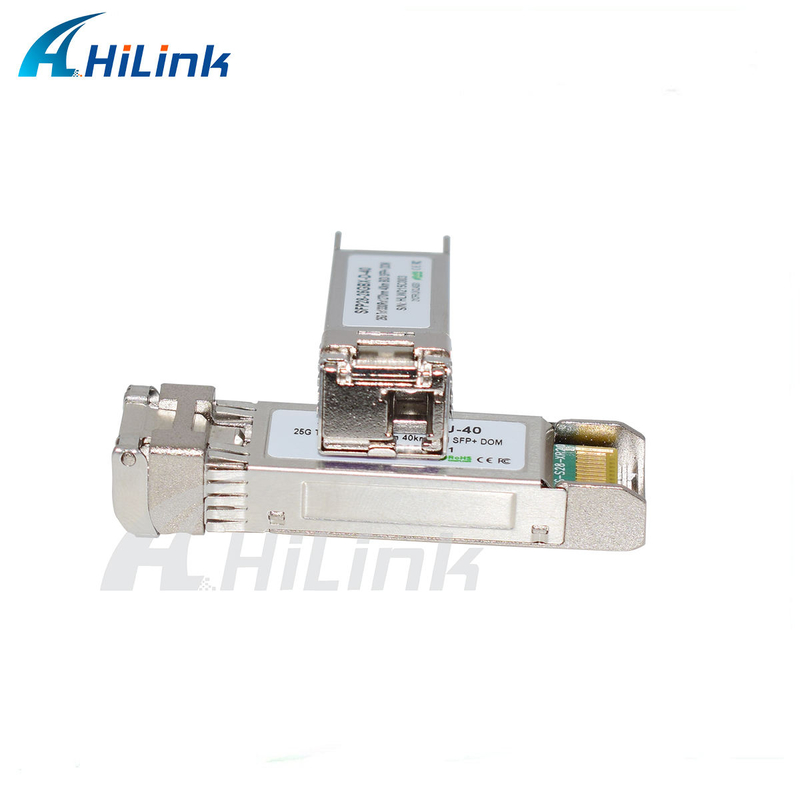

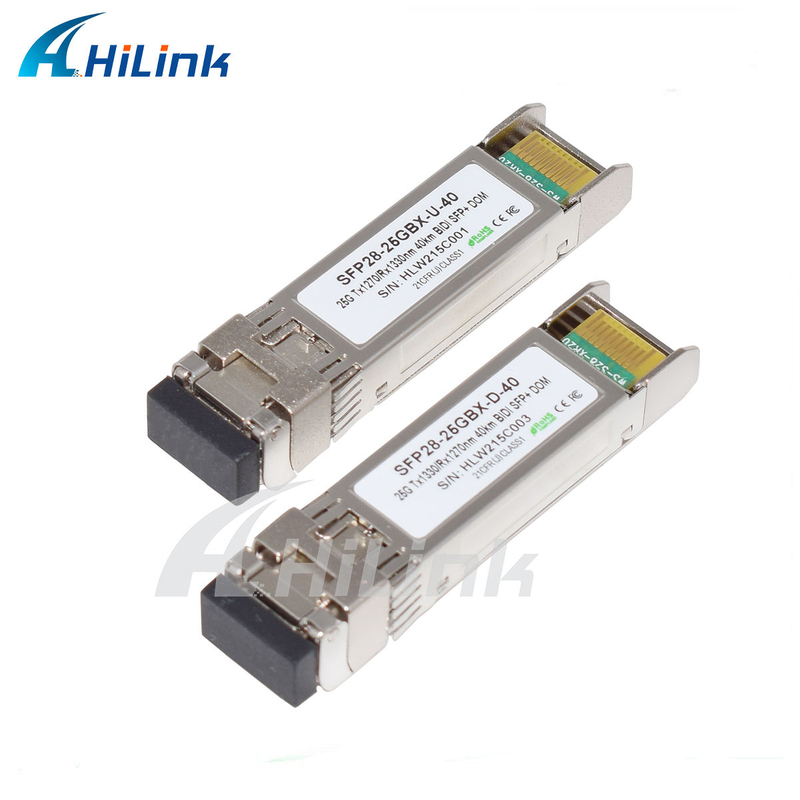

The HL25G40x-xxTransceiver is intended for 40km reach service from 24.33Gb/s to 25.78Gb/s BI-direction single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.
The low jitter and low bit error rate optical assembly features a DML laser transmitter and APD/TIA receiver. It utilizes internal clock and data recovery (CDR) units on transmitter and the receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.
| Model | Description |
|---|---|
| SFP28-25G-SR | SFP28 25Gbps 850nm 100M LC DOM |
| SFP28-25G-LR | SFP28 25Gbps 1310nm 10KM LC DOM |
| SFP28-25G-ER | SFP28 25Gbps 1310nm 40KM LC DOM |
| SFP28-25G-BIDI-10KM | SFP28 25Gbps BIDI1270/1310nm 10KM LC DOM |
| SFP28-25G-BIDI-40KM | SFP28 25Gbps BIDI1270/1310nm 40KM LC DOM |
| SFP28-25G-BIDI-50KM | SFP28 25Gbps BIDI1270/1310nm 50KM LC DOM |
As we have various kinds of products, if you can't find the correct item you need, please send us inquiry. We will reply shortly.
