원래 장소:
광동, 중국
브랜드 이름:
HILINK
인증:
CE FCC Rohs
모델 번호:
HL-SFP28-Bidi-60km
| Attribute | Value |
|---|---|
| Data transfer rate | 25G |
| Max Distance | 600km |
| Wavelength 1 | 1295nm/1309nm |
| Connector | LC Simplex |
| Warranty | 3 Years |
| CE FCC Rohs | Support |

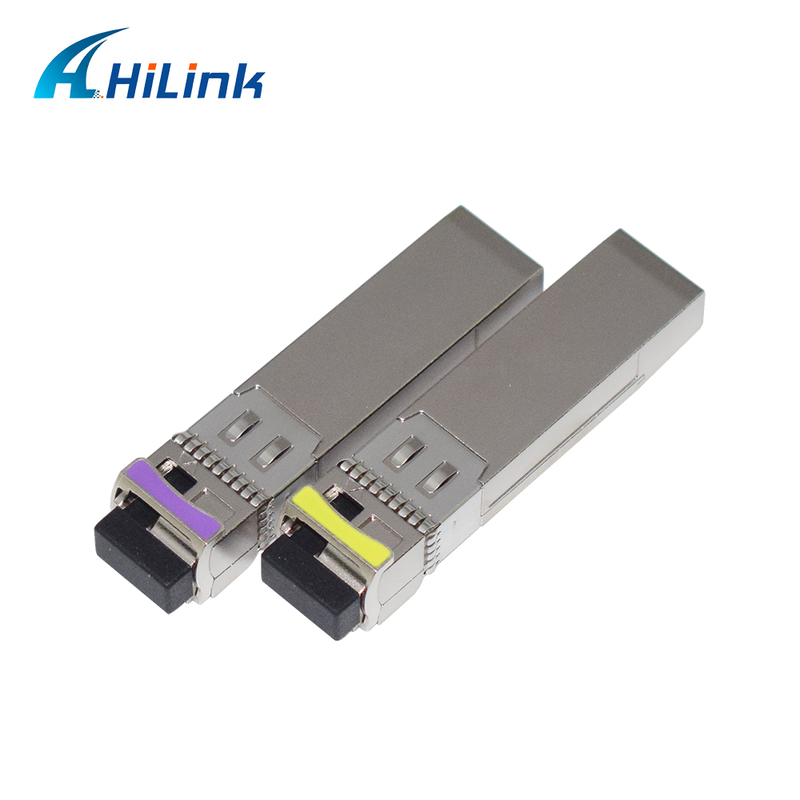

The SFP28-25G-UD-60 series single mode transceiver is small form factor pluggable module for duplex optical data communications. The SFP28-25G-UD-60 module is designed for single mode fiber and operates at a nominal wavelength of 1295.56nm or 1309.14nm; the transmitter section uses a multiple quantum well EML, which is class 1 laser compliant according to International Safety Standard IEC-60825.
The SFP28 60km module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.
25GE BASE-LR Ethernet
CPRI Option 10/eCPRI
| 25G SFP | Description |
|---|---|
| SFP28-25G-SR | SFP28 25Gbps 850nm 100M LC DOM |
| SFP28-25G-LR | SFP28 25Gbps 1310nm 10KM LC DOM |
| SFP28-25G-ER | SFP28 25Gbps 1310nm 40KM LC DOM |
| SFP28-25G-BIDI-10KM | SFP28 25Gbps BIDI1270/1310nm 10KM LC DOM |
| SFP28-25G-BIDI-40KM | SFP28 25Gbps BIDI1270/1310nm 40KM LC DOM |
| SFP28-25G-BIDI-50KM | SFP28 25Gbps BIDI1270/1310nm 50KM LC DOM |
As we have various kinds of products, if you can't find the correct item you need, please send us inquiry. We will reply shortly.
