Place of Origin:
Guangdong, China
브랜드 이름:
Hilink
인증:
CE Rohs
Model Number:
800G-OSFP112-DR8
| Attribute | Value |
|---|---|
| Product Name | 800G-OSFP112-DR8 |
| Data Rate | 800G |
| Reach | up to 500m |
| Operating Temperature | 0 to 70℃ |

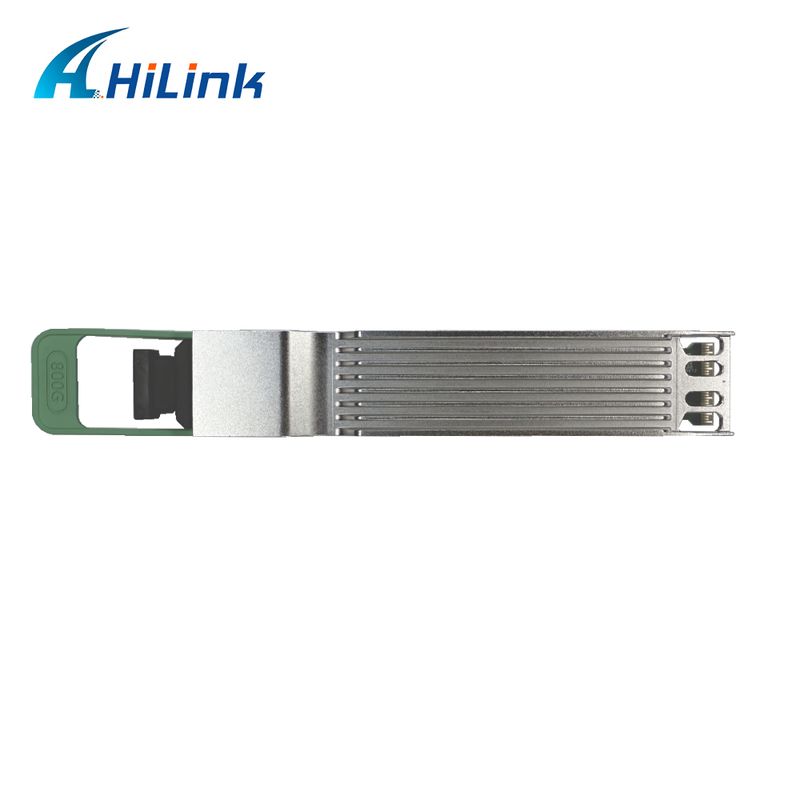

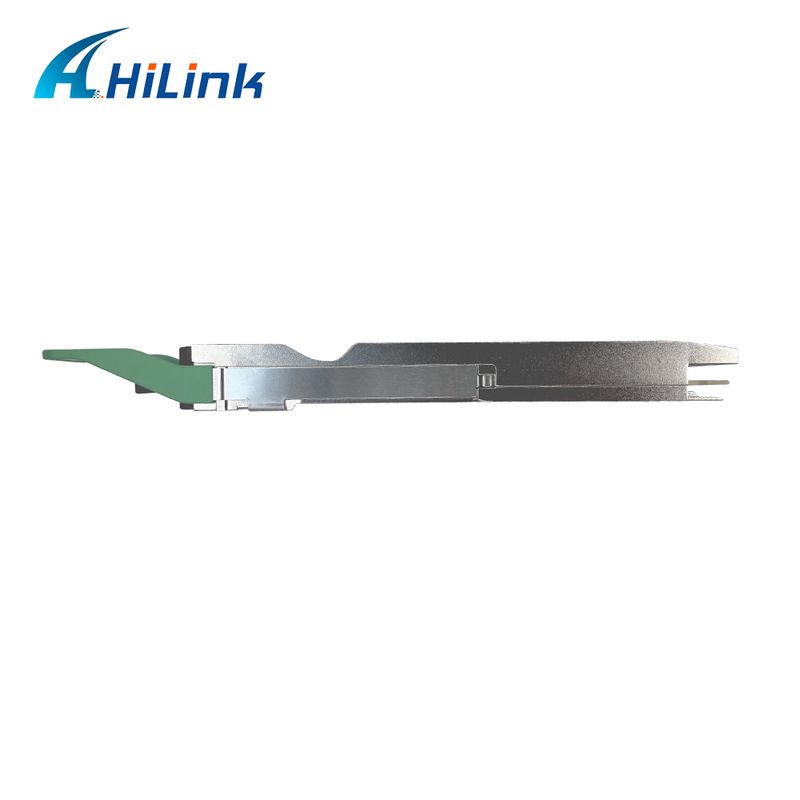

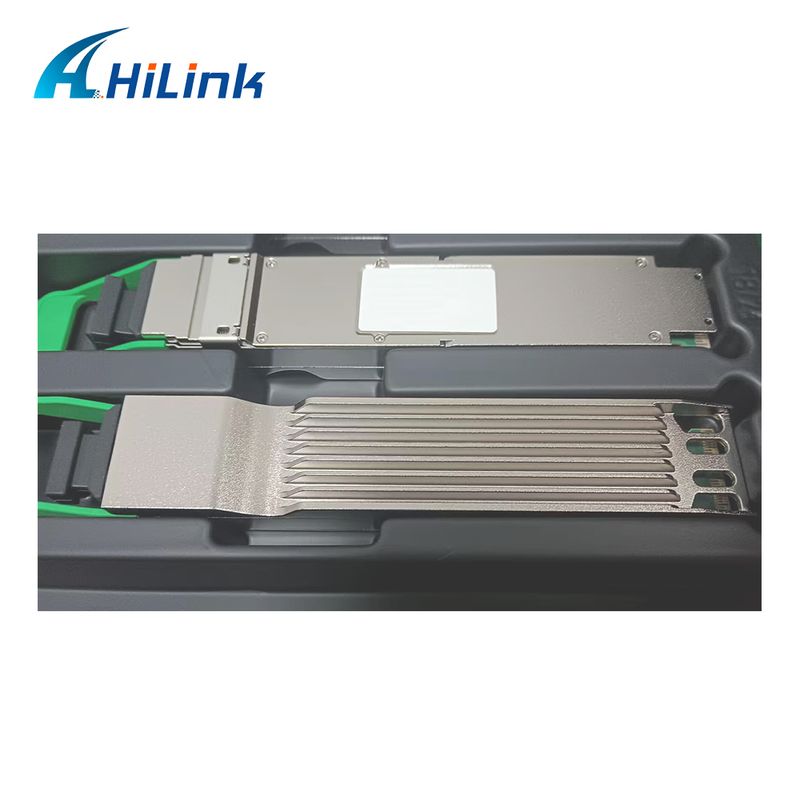

This 800Gb/s Octal Small Form-factor Pluggable (OSFP) optical module features a top closed fin design for 500m optical communication applications. The module converts 8 channels of 100Gb/s (PAM4) electrical input data to 8 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 800Gb/s.
An optical fiber cable with dual MPO-12 connector can be plugged into the OSFP112 DR8 module receptacle, with proper alignment ensured by guide pins inside the receptacle. Electrical connection is achieved through an OSFP MSA-compliant edge type connector.
The module supports I2C interface for status monitoring and control.
All optical transceivers are brand new with new components and parts. We never use old or refurbished materials. Each unit undergoes functional testing and aging tests before shipment.
We provide a 3-year warranty for all optical transceivers from the date of shipment. OEM/ODM orders are available.
