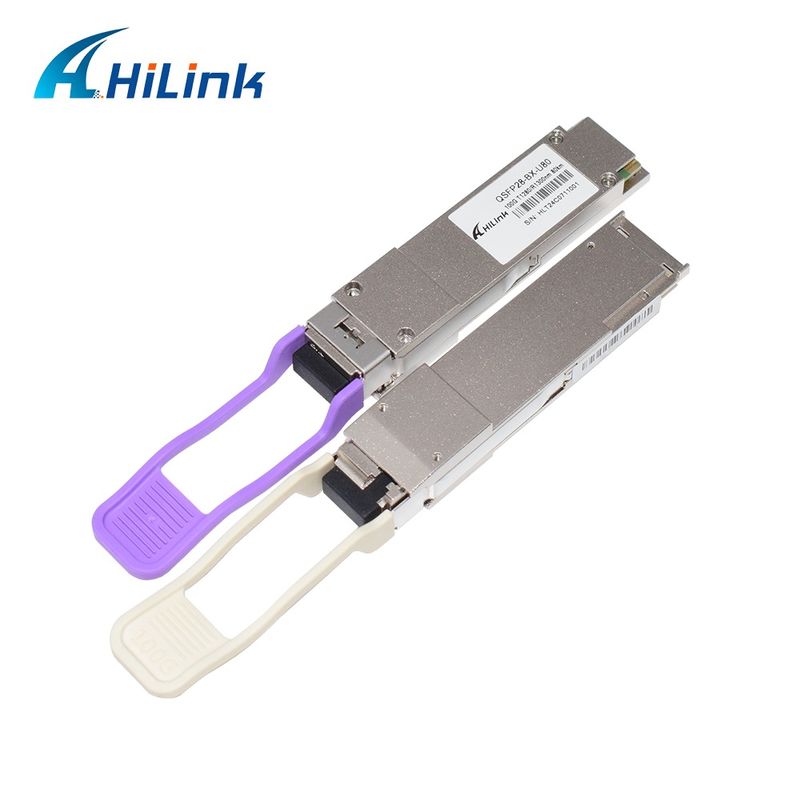

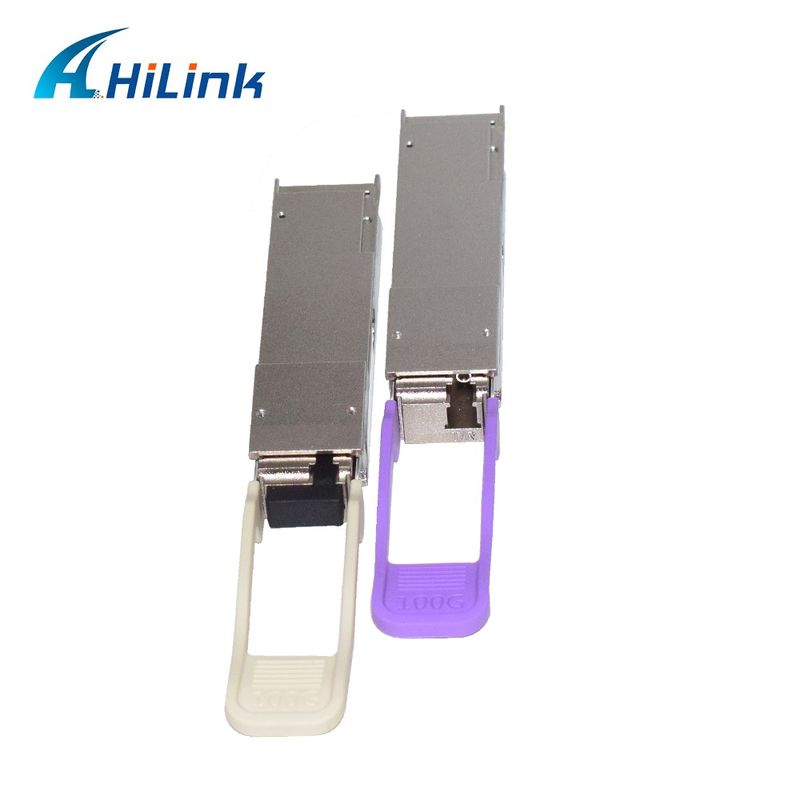

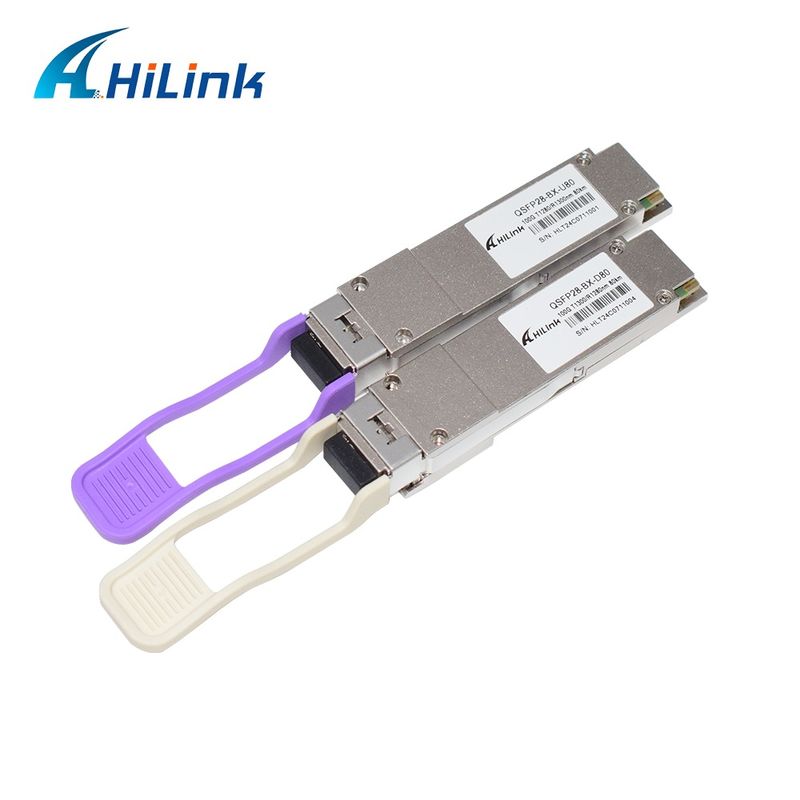

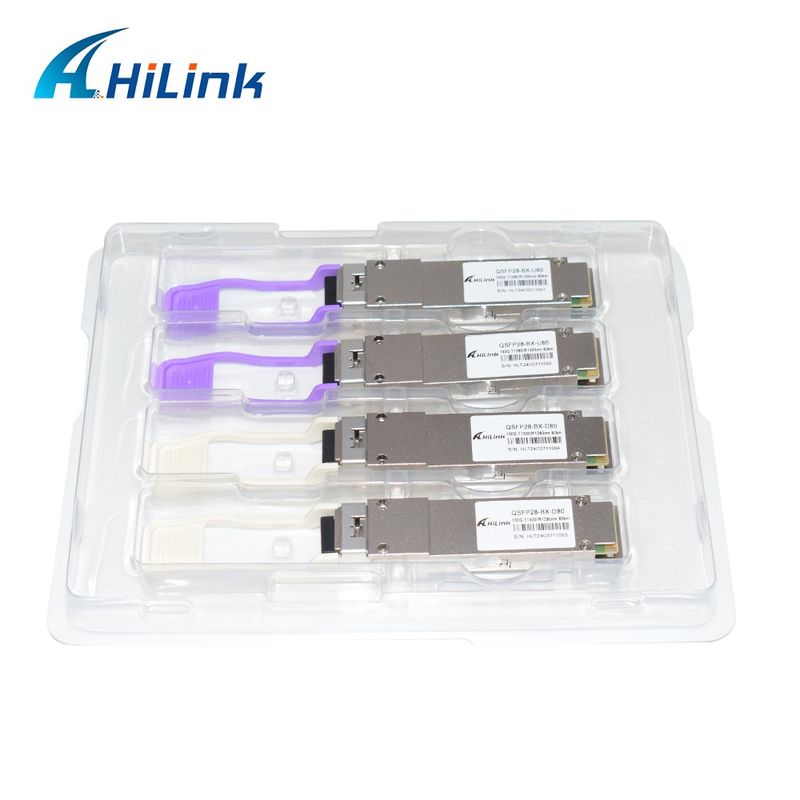

HL-QSFP28-100G-80 100Gb/s QSFP28 BiDi 80km Transceiver Hot Pluggable Simplex LC Connector EML+PIN with SOA Single mode DDM

HL-QSFP28-100G-80 100Gb/s QSFP28 BiDi 80km Transceiver Hot Pluggable Simplex LC Connector EML+PIN with SOA Single mode DDM

HL-QSFP28-100G-UD-80 provides 100GBase-BX throughput up to 80km over single-mode fiber (SMF) using wavelengths of 1273.54, 1277.89, 1282.26, 1286.66nm- TX/1295.56, 1300.05, 1304.58, 1309.14nm-RX(1295.56, 1300.05, 1304.58, 1309.14nm- TX/1273.54, 1277.89, 1282.26, 1286.66nm-RX) via an LC connector. This bidirectional unit must be used with another transceiver or network appliance of complimenting wavelengths. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, data center, and storage area networks applications.

Features

4x25Gb/s LAN WDM Blue or Red Side TOSA, LAN WDM Red or Blue Side ROSA with SOA

Support 100GBASE-ZR4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps

Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module  electrical standard ITU-T G.959.1-2012-02 standard

Simplex LC connector·

Single +3.3V power supply operating

Temperature range 0°C to 70°C

RoHS Compliant Part

Applications

100GBASE-ZR4

Data Center

OEM and ODM

OEM/ODM order is available.

Guarantee

We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What we supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.
