Place of Origin:
Guangdong, China
브랜드 이름:
Hilink
인증:
CE Rohs
Model Number:
HL-QSFP28-DCO

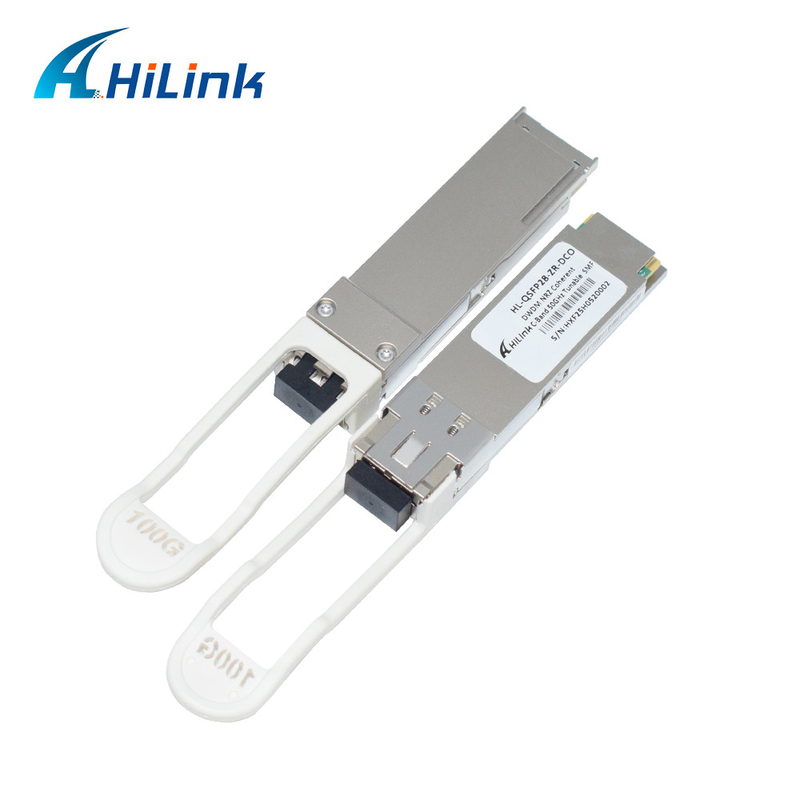

HL-QSFP28-DCO 100G ZR QSFP28 Digital Coherent Optics Transceiver
Plz leave which compatible switch you need!!
Product Description
l Digital Coherent Optics module, hot-pluggable QSFP28 form factor
l IEEE 100G Ethernet (CAUI-4) or ITU-T 100G OTN (OTL4.4) compliant host interface 100G optical coherent interface with DP-DQPSK modulation and Staircase FEC per IEEE Std. 802.3-2022 100GBASE-ZR or ITU-T G.709.2
l Transmission reach:
Up to 80km unamplified (loss limited)
Up to 120km amplified (dispersion limited, optionally extendable to 300km)
l Full C-band tunable, 50GHz or 100GHz grid with optional FlextuneTM automatic wavelength tuning
l Case temperature range 0°C to 70°C (C-temp) or -40°C to 85°C (I-temp)
l Power dissipation < 5.5W (C-temp) or < 6.0W (I-temp)
l Remote digital diagnostics monitoring
Applications
l Access and aggregation networks
l Cable TV networks
l Wireless front-haul & mid-haul
Package & Shipping
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
Our Service
OEM/ODM order is available
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
